Leviton - Angled QUICKPORT™ Patch Panels

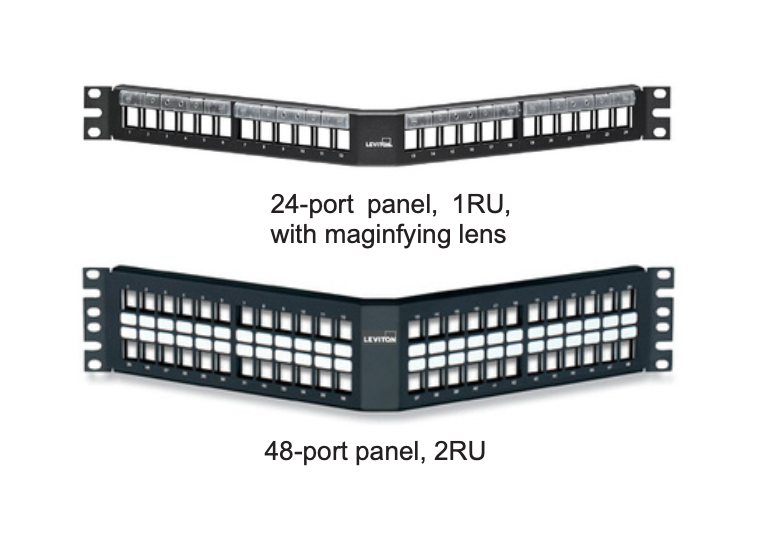

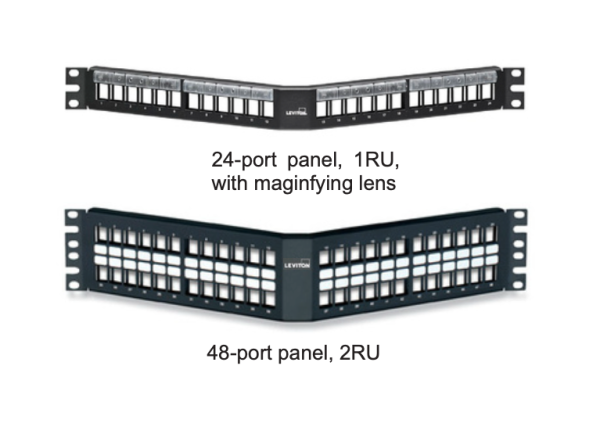

Angled QUICKPORT Patch Panels accept all QUICKPORT snap‑in modules for copper and fiber, providing an angled design that routes cords directly into vertical cable managers to save rack space. Panels are constructed from 16‑gauge steel with a black powder‑coat finish, mount to industry‑standard 19‑inch racks, feature silk‑screened white port numbers and write‑on blocks, and are available in 24‑port and 48‑port configurations, including a 48‑port 1RU high‑density option and versions with magnifying lens label holders.

Mechanical / Environmental / Compliance (as available)

Materials: 16‑gauge steel; black powder coat finish.
Mounting: 19‑inch rack mount.
Color: Black.
Temperature (Storage): −40 °C to +70 °C.
Temperature (Operating): −10 °C to +60 °C.
Humidity (Max): 95% relative humidity, non‑condensing.
Country of Origin by part: 49256‑D48 — China; 49256‑H48 — Taiwan; 49256‑L48 — Taiwan; 49256‑H24 / 49256‑L24 — Please contact Customer Service.

Part Numbers / Configurations (as listed)

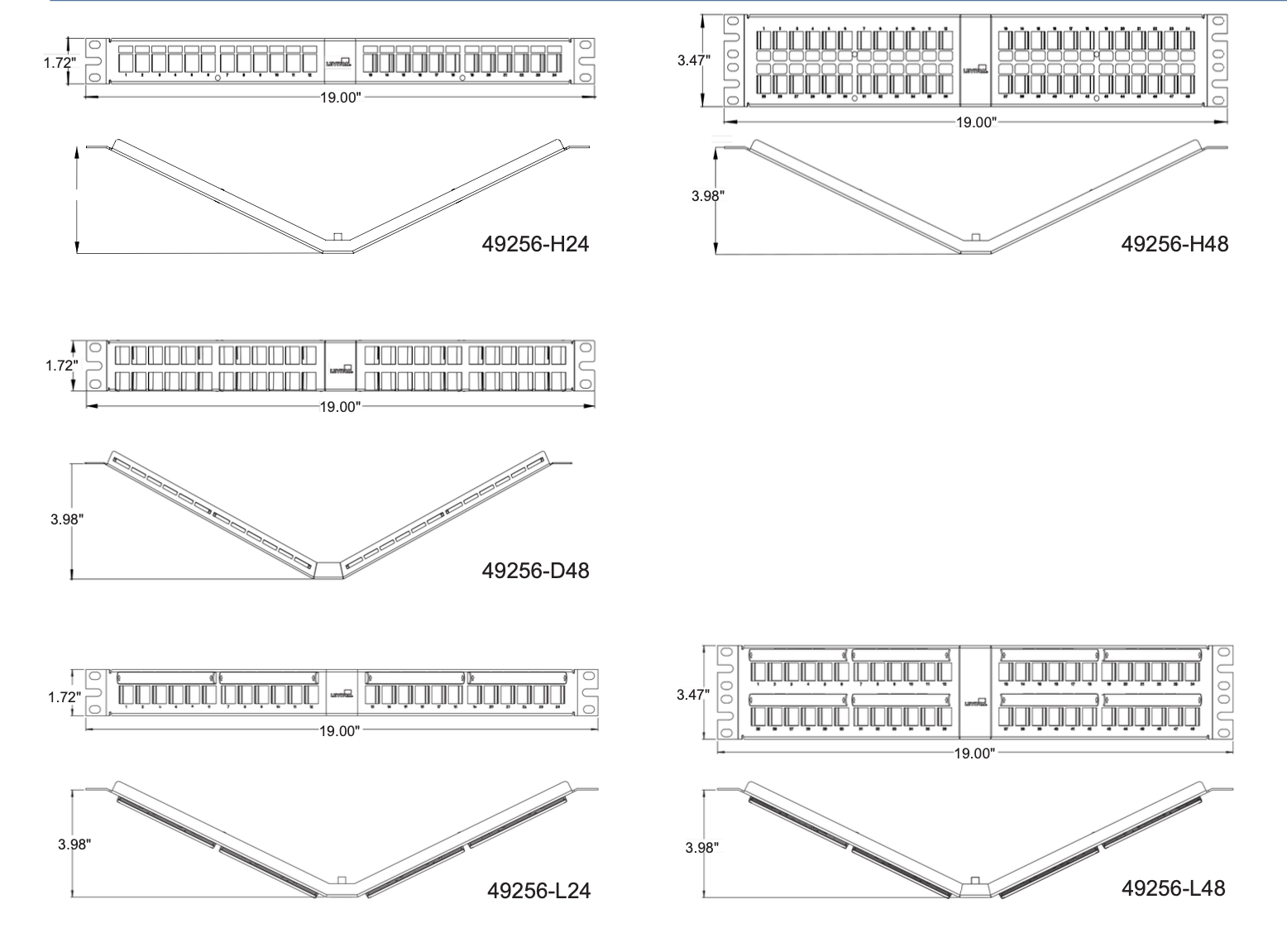

Angled QUICKPORT Patch Panel, 24‑port, 1RU — 49256‑H24
Angled QUICKPORT Patch Panel, 48‑port, 2RU — 49256‑H48
Angled QUICKPORT High‑Density Patch Panel, 48‑port, 1RU — 49256‑D48
Angled QUICKPORT Patch Panel, 24‑port, 1RU, with magnifying lens — 49256‑L24
Angled QUICKPORT Patch Panel, 48‑port, 2RU, with magnifying lens — 49256‑L48

SKU

49256‑H24, 49256‑H48, 49256‑D48, 49256‑L24, 49256‑L48

Warranty

For Leviton product warranties, go to .

Product Specification

Features and Benefits

Cords route directly into vertical managers from angled panel, eliminating need for horizontal management and saving rack space.
High‑density options including 48‑port density in 1RU for maximum port density.
Compatible with QUICKPORT Cat 5e, Cat 6, Cat 6A connectors and QUICKPORT fiber adapters for mixed copper/fiber deployments.
Magnifying lens label holder option ensures visibility of port labels.
Silk‑screened white port numbers and write‑on blocks simplify identification and labeling.
Single‑port replacement capability allows replacement of inoperative ports.
16‑gauge steel construction with black powder‑coat finish for durability and rack aesthetics.
Mounts to standard 19‑inch equipment racks for common installations.

Product Specification Sheet

Download the Sheet

Leviton – Angled QUICKPORT™ Patch Panels
