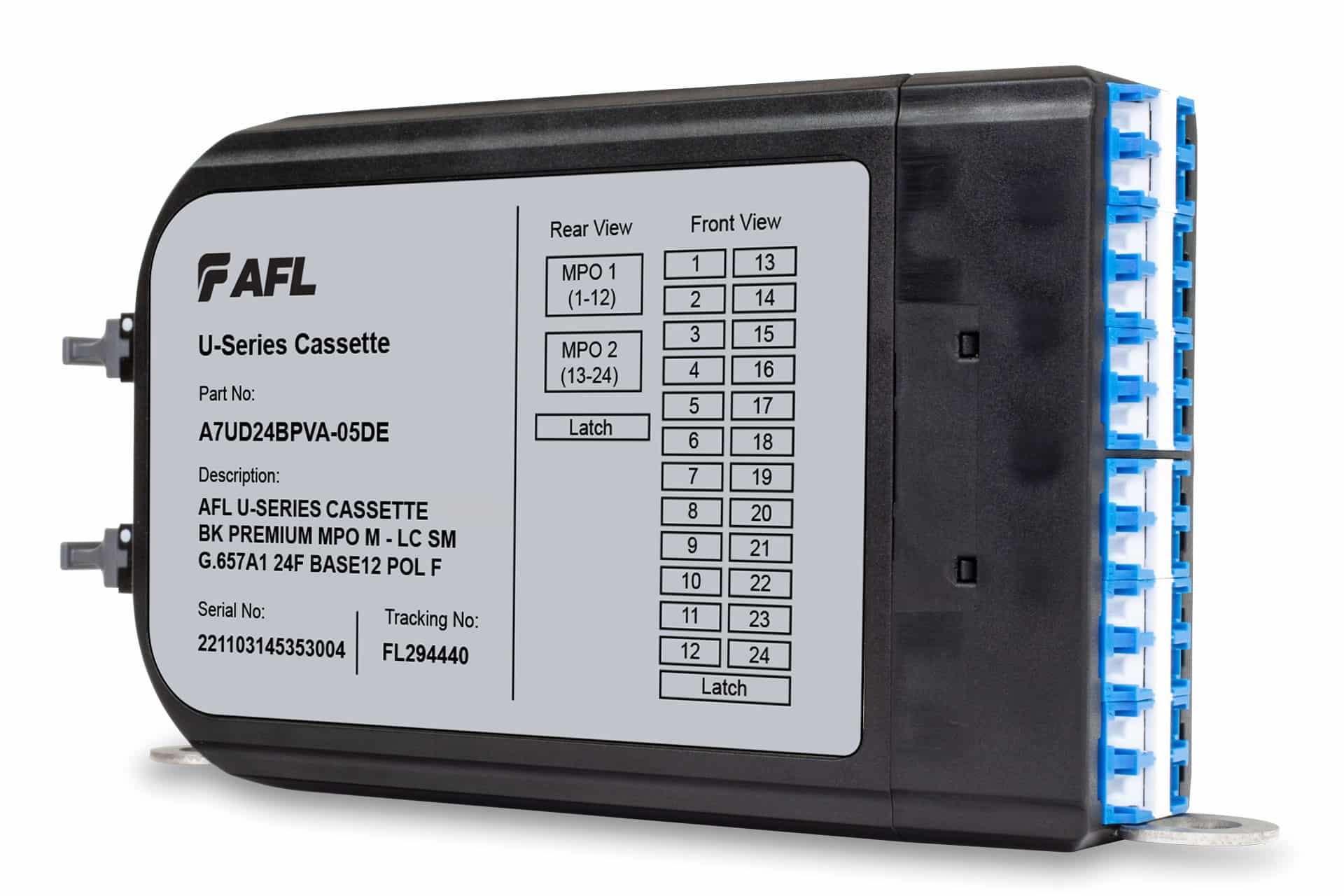

U-Series MPO Fanout Cassettes

U-Series MPO Fanout Cassettes

Our High-Density MPO to LC Cassette come in Base-8, Base-12, Base-24 options and are compatible with all U-Series Housing. Each cassette contains up to 12 LC ports (24 fibers), with Multi-mode and Single mode cassette options available.

The built in Shuttered LC Adapters enable a greener solution for your workplace by eliminating adapter dust caps. This product provides automatic laser eye safety, while facilitating fault detection and faster patching. Additionally, the Low Loss Enabled by Fujikura MT Ferrule ensures maximum reliability and mechanical performance.

The polarity can be managed in the cassette with same cassette orientation possible at both ends of a link. Another conveniences lies in the Cassettes’ ability to be locked in a parked or maintenance position for simplified patching.

Category:

Description

Our U-Series MPO Fanout Cassettes will offer you unmatched scalability in allowing you to quickly build a high-density fiber optic infrastructure. Through seamless and efficient plug-and-play installation, these cassettes can be loaded anywhere on your housing. Additionally, our U-Series MPO Fanout Cassettes are available in a wide range of configurations. These cassettes enable seamless connections from your active equipment to your physical layer and supports migration speeds from 10G through to 400G and beyond.

These High-Density MPO to LC Cassette come in Base-8, Base-12, Base-24 options and are compatible with all U-Series Housing. Each cassette contains up to 12 LC ports (24 fibers), with Multi-mode and Single mode cassette options available.

The built in Shuttered LC Adapters enable a greener solution for your workplace by eliminating adapter dust caps. This product provides automatic laser eye safety, while facilitating fault detection and faster patching. Additionally, the Low Loss Enabled by Fujikura MT Ferrule ensures maximum reliability and mechanical performance.

The polarity can be managed in the cassette with same cassette orientation possible at both ends of a link. Another conveniences lies in the Cassettes’ ability to be locked in a parked or maintenance position for simplified patching.

Key Features

High-Density MPO to LC Cassettes

  • Base-8, Base-12, Base-24 options available
  • Compatible with all U-Series Housings
  • Up to 12 LC ports (24 fibers) per cassette
  • Multi-mode and Single mode cassette options available

Shuttered LC Adapters

  • Greener solution by eliminating adapter dust caps
  • Provide automatic laser eye safety
  • Easy fault detection
  • Facilitate faster patching

Low Loss Enabled by Fujikura MT Ferrule

  • Ensures maximum reliability and mechanical performance

Polarity F

  • Polarity managed in the cassette
  • Same cassette orientation can be used at both ends of a link

Facilitates Moves, Adds, and Changes

  • Cassettes can be locked in a parked or maintenance position for simplified patching

Specifications

Fiber Types SM, OM4
Fiber Counts Available 12 LC ports (24 fiber), 8 LC ports (16 fiber), 6 LC ports (12 fiber)
Polarity Mapping Available Base 8/12: Polarity F (Polarity A, B, and C available on request)
Adapter Types MPO (Male) to LC Shuttered Adapters
Cassette Material ABS, CR4 Steel
Cassette Dimensions Height: 87mm (3.4 inches)
Width: 30mm (1.2 inches)
Depth: 160mm (6.3 inches)
Package Dimensions Height: 140mm (5.5 inches)
Width: 45mm (1.8 inches)
Depth: 280mm (11 inches)
Weight Product weight: 0.17kg
Packaged weight: 0.24kg
Materials Compliant RoHS, Reach/SVHC, UL 94V-0
