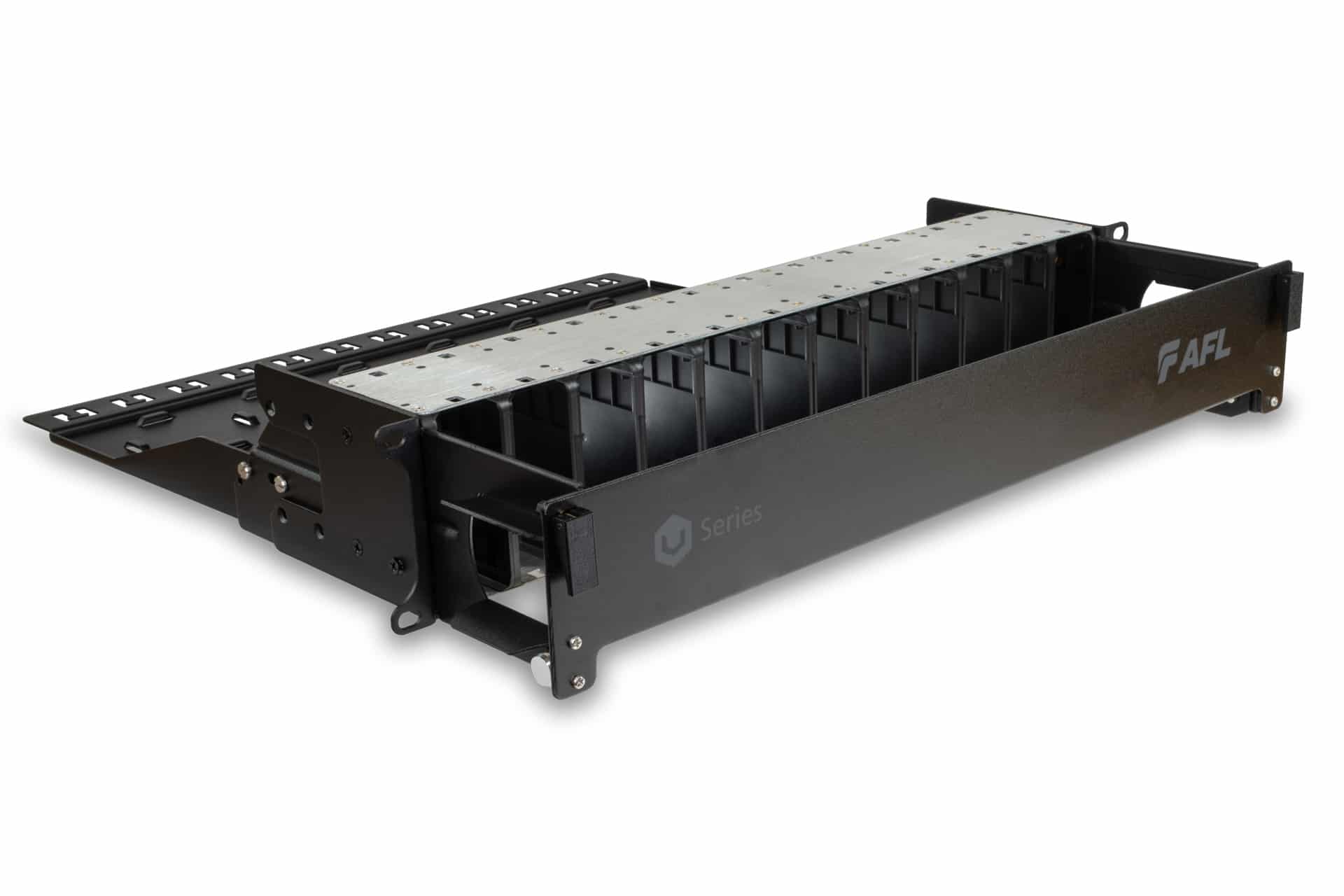

U-Series Housings

U-Series Housings

U-Series Housing’s Front and Rear Cable Management allows you to run assemblies anywhere on the housing to allow access for efficient cable loading and patching. Front and Rear Loadable Cassettes allow easily accessibility and facilitates faster installation. Cassettes can be installed in shallow-depth cabinets and locked in a parked or maintenance position for simplified patching.

Category:

Description

U-Series Housings allow you to achieve an outstanding network performance across a variety of data center and service provider applications. Additionally, U-Series Housings are compatible with a wide range of cassettes and adapter plates, allowing for a seamless installation. Their modular connectivity solution will give you a very flexible approach to building a high-density network with up to 144 LC ports (288 fibers) utilizing LC duplex in 2RU of space. Their Front and Rear Cable Management capabilities support easy access for efficient loading and patching. This gives you the freedom to run assemblies to the left, right, top, or bottom of the housing depending on where you need to connect. This also facilitates the power to customize your labeling for effective identification in network maintenance, upgrades, and troubleshooting. Front and Rear Loadable Cassettes are easily accessible and facilitate faster installation. An added bonus is that cassettes can be locked in a parked or maintenance position for simplified patching

Key Features

  • Front and Rear Cable Management

    • Easy access for efficient cable loading and patching
    • Run assemblies to the left, right, top, or bottom of the housing depending on where you need to connect

    Front and Rear Loadable Cassettes

    • Easily accessible and facilitates faster installation

    Easy Moves, Adds, and Changes (MACs)

    • Cassettes can be locked in a parked or maintenance position for simplified patching

    Customizable Labeling

    • Effective identification for network maintenance, upgrades, and troubleshooting

    Shallow-Depth Deployment

    • Can be installed in shallow-depth cabinets (<300mm) with front and rear management removed

Specifications

Capacity Up to 5 U-Series Cassettes

Maximum density of:

LC: 60 ports (120 fibers)

MPO: 60 ports (720 fibers)

 Up to 12 U-Series Cassettes

Maximum density of:
LC:

144 ports (288 fibers)

MPO: 144 ports (1728 fibers)
Product Dimensions Height: 44mm (2.8 inches)

Width: 480mm (19 inches)

Depth: 389mm (15.3 inches)

 Height: 88mm (3.5 inches)

Width: 484mm (19 inches)

Depth: 502mm (19.8 inches)
Package Dimensions Height: 70mm (1.7 inches)

Width: 520mm (20.4 inches)

Depth: 435mm (17.1 inches)

 Height: 155mm (6.1 inches)

Width: 520mm (20.4 inches)

Depth: 315mm (12.4 inches)
Weight Product weight: 1.6kg

Packaged weight: 2kg

 Product weight: 2.6kg

Packaged weight: 3.2kg
Materials ABS, CR4 Steel, Aluminum
Materials Compliant RoHS, Reach / SVHC, UL 94V-0
Regional Availability Global
