Prismdcs – FI-CAB46612-OPW-CR FI 46U 600MM X 1200MM Server Cabinet

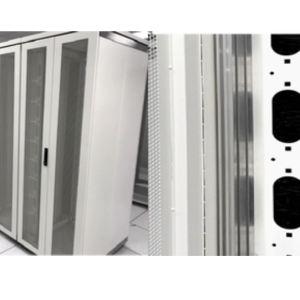

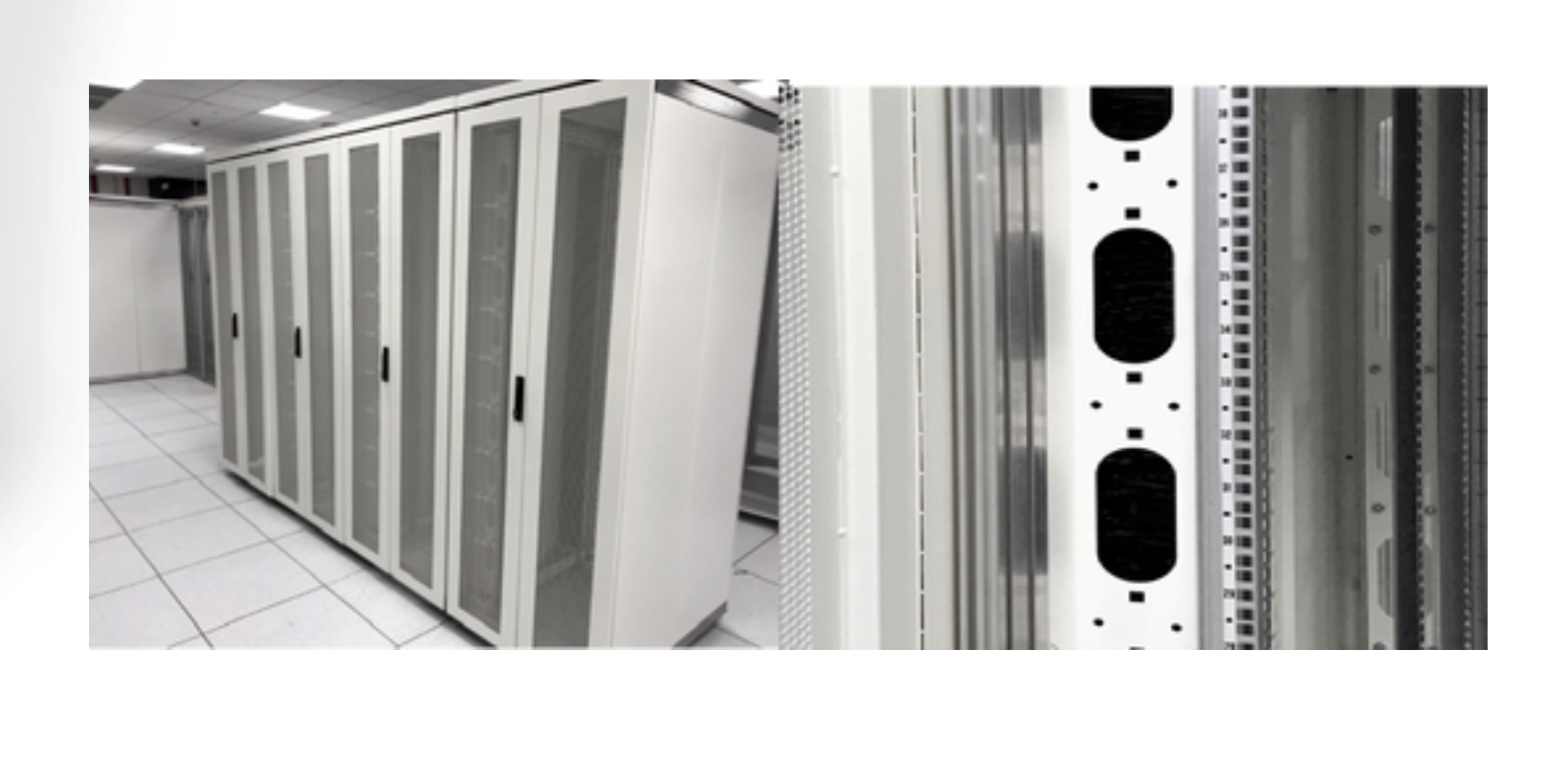

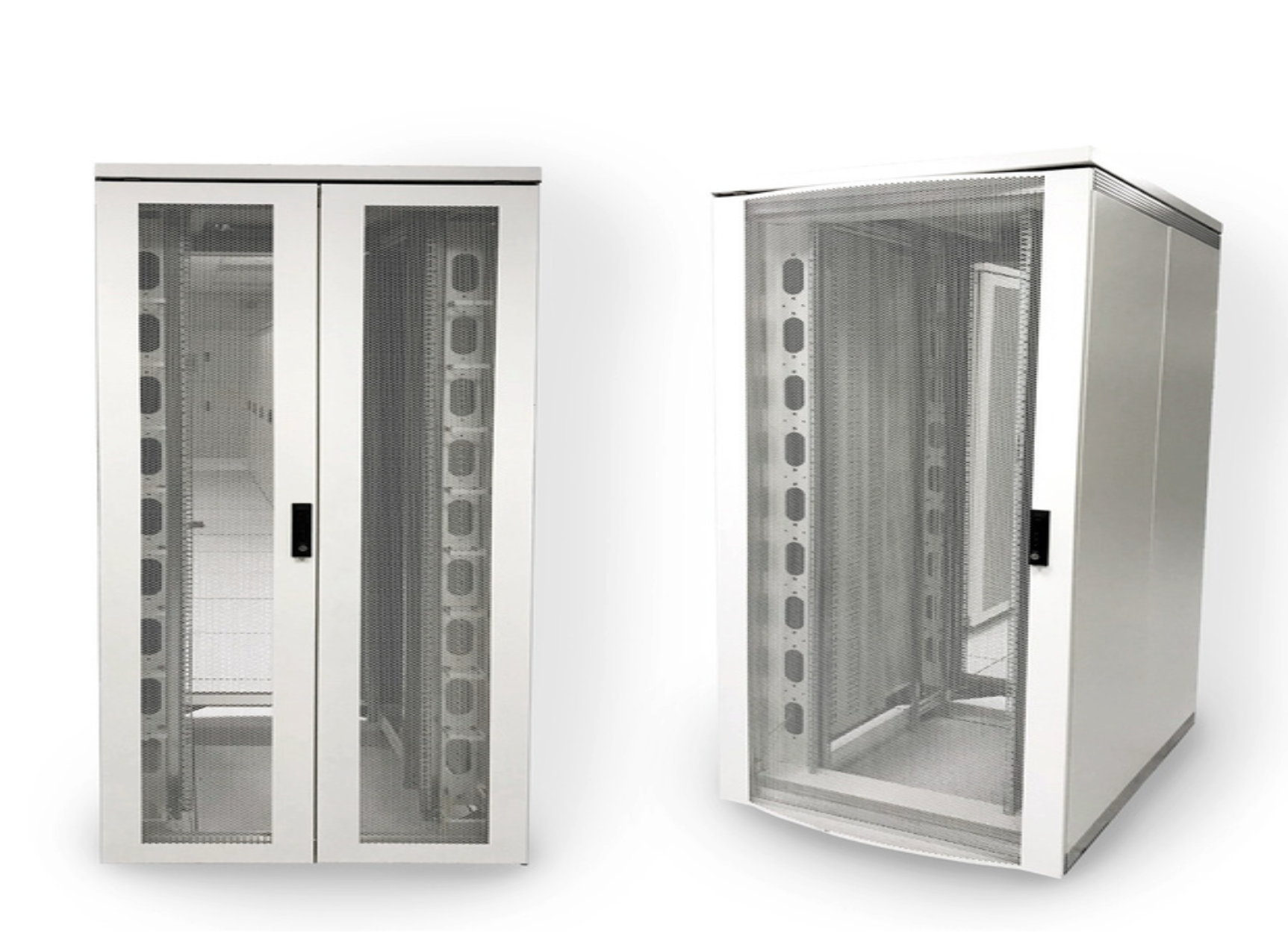

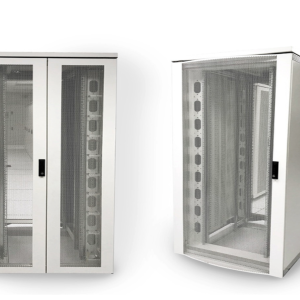

FI 46U 600MM x 1200MM server cabinet built to OPW comms rack specification with bespoke roof cut outs for PDUs, curved mesh doors, adjustable mounting profiles, finger-style cable trays, deep PDU brackets, earth bar, baying and castors.

1 x Bolted aluminum frame construction
1 x Bespoke OPW spec roof
2 × 450mm x 80mm brush strip cut outs – 1 centrally either side & 1 x standard 300 × 80mm cut out to rear of roof
2 x 100mm x 100mm cut out in each rear corner of roof for PDU’s
100mm x 100mm cut outs to have 2 part gland plate to clamp around 32amp cable – 17mm diameter central to 2 part plate
1 x Curved mesh 83% airflow door, 3 point locking system and combi lock
1 x Wardrobe mesh 83% airflow door, 3 point locking system and combi lock
1 x Pair split sliding panels
4 x Universal style adjustable mounting profiles
U height number labels on all profiles
Front profiles set 110mm back from front of aluminium
Rear profiles set 686m from front profiles
No mid profiles
2 x Horizontal air baffle plates fitted at top and bottom of profiles
1 x Finger style 46U 300mm cable tray (1 fitted centrally right-hand side) must have V fold for rigidity
2 x Finger style 46U 100mm cable tray (1 fitted either side at rear of cabinet) must have V fold for rigidity
2 x Pair of single dead space PDU brackets to be 20mm deeper than standard dead space brackets
3 x 1U jumper ring IDF design fitted to inside of top rear ALI horizontal
1 x 46U earth bar
1 x Baying kit
1 x Earth bonding kit
1 x Set of heavy duty castors
1 x Bespoke set of adjustable cabinet feet — feet to have 20mm thread

Product Specification

Cabinet Height: 46U
Cabinet Width: 600 mm
Cabinet Depth: 1200 mm
Frame Construction: Bolted aluminium frame
Roof: Bespoke OPW spec roof
Roof Cut Outs: 2 × 450 mm × 80 mm brush strip cut outs; 1 × 300 × 80 mm rear cut out
PDU Roof Cut Outs: 2 × 100 mm × 100 mm in each rear corner
Gland Plate: 2-part gland plate for 32A cable; 17 mm diameter central hole in plate
Front Door: Curved mesh door, 83% airflow, 3-point locking, combi lock
Rear Door: Wardrobe mesh door, 83% airflow, 3-point locking, combi lock
Side Panels: Pair split sliding panels
Mounting Profiles: 4 × universal style adjustable mounting profiles; U height number labels on all profiles
Profile Setback: Front profiles set 110 mm back from front of aluminium; Rear profiles set 686 mm from front profiles
Mid Profiles: None
Air Baffle Plates: 2 × horizontal air baffle plates fitted at top and bottom of profiles
Cable Trays: 1 × finger style 46U 300 mm cable tray (central right-hand side) with V fold; 2 × finger style 46U 100 mm cable trays (rear sides) with V fold
PDU Brackets: 2 × pair single dead space PDU brackets; 20 mm deeper than standard dead space brackets
Jumper Rings: 3 × 1U jumper ring (IDF design) fitted to inside of top rear aluminium horizontal
Earthing: 1 × 46U earth bar; 1 × earth bonding kit
Baying: 1 × baying kit
Mobility & Feet: 1 × set heavy duty castors; 1 × bespoke set adjustable cabinet feet with 20 mm thread
