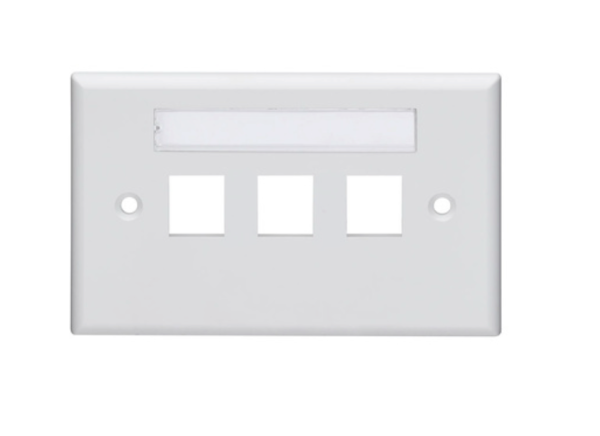

Leviton - Single‑Gang Horizontal QUICKPORT™ Wallplate with ID Window, 3‑Port, White (42070‑3WS)

The Leviton Single‑Gang Horizontal QUICKPORT Wallplate with ID Window is a one‑piece horizontal flush‑mount housing that fits standard NEMA openings and accommodates low‑voltage box eliminators. It provides three QUICKPORT openings, a clear port‑identification window, and accepts all Leviton QUICKPORT snap‑in modules. Constructed of high‑impact, fire‑retardant plastic rated UL 94V‑0, the wallplate package includes color‑matched imperial screws and bright zinc finished metric screws. Wallplates are sold empty.

Physical / Compliance (as available)

Material: High‑impact, fire‑retardant plastic rated UL 94V‑0 (from specification).
Capacity: Three ports.
Standards: cULus Listed; ANSI/TIA‑568‑C.0 (from PDF specification).
Dimensions: See PDF drawings (page two) for exact dimensions.
Packaging: Wallplates sold empty.

SKU: 42070‑3WS

UPC: 078477903827

Country of Origin: China

RoHS Compliance: Yes

Product Specification

Features and Benefits

Horizontal port openings and identification window to match regional installation standards.
Includes identification window and color‑matched imperial slotted screws plus bright zinc finished metric slotted screws.
Fits within minimum rectangular NEMA openings and accommodates low‑voltage box eliminators for a flush mount.
Compatible with all individual Leviton QUICKPORT modules for flexible configurations.
Individual port configurability allows specification flexibility for multimedia station applications.
