Leviton - Single‑Gang Horizontal QuickPort® Wallplate with ID Window, 3‑Port (42070‑3WS)
Leviton - Single‑Gang Horizontal QuickPort® Wallplate with ID Window, 3‑Port (42070‑3WS) - Image 2

Leviton – Single‑Gang Horizontal QuickPort® Wallplate with ID Window, 3‑Port (42070‑3WS)

Horizontal single‑gang flush‑mount QuickPort wallplate with clear ID window, 3 ports, white, accepts all Leviton QuickPort modules.

SKU: 42070‑3WS Categories: , Tags: , , , , , , , , , , , Brand:

The Leviton Single‑Gang Horizontal QuickPort Wallplate with ID Window is a one‑piece horizontal single‑gang flush‑mount housing that fits standard NEMA openings and accommodates low‑voltage box eliminators. It provides three QuickPort openings, a clear port‑identification window, and accepts all Leviton QuickPort snap‑in modules. Constructed of high‑impact, fire‑retardant plastic rated UL 94V‑0, the wallplate is cULus Listed and compliant with ANSI/TIA‑568‑C.0. Package includes color‑matched imperial screws and bright zinc finished metric screws. Wallplates are sold empty.

Physical / Compliance

  • Material: High‑impact, fire‑retardant plastic rated UL 94V‑0.
  • Capacity: Three ports.

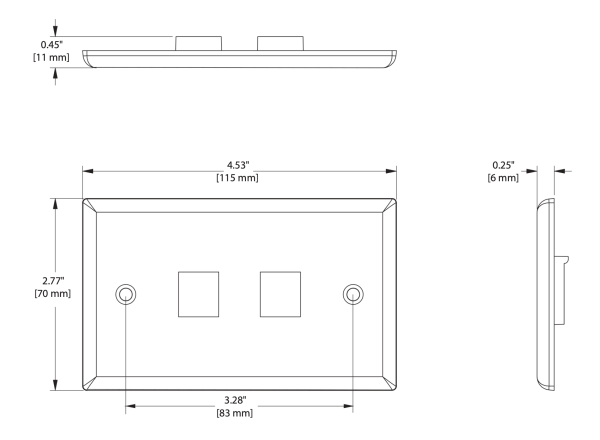

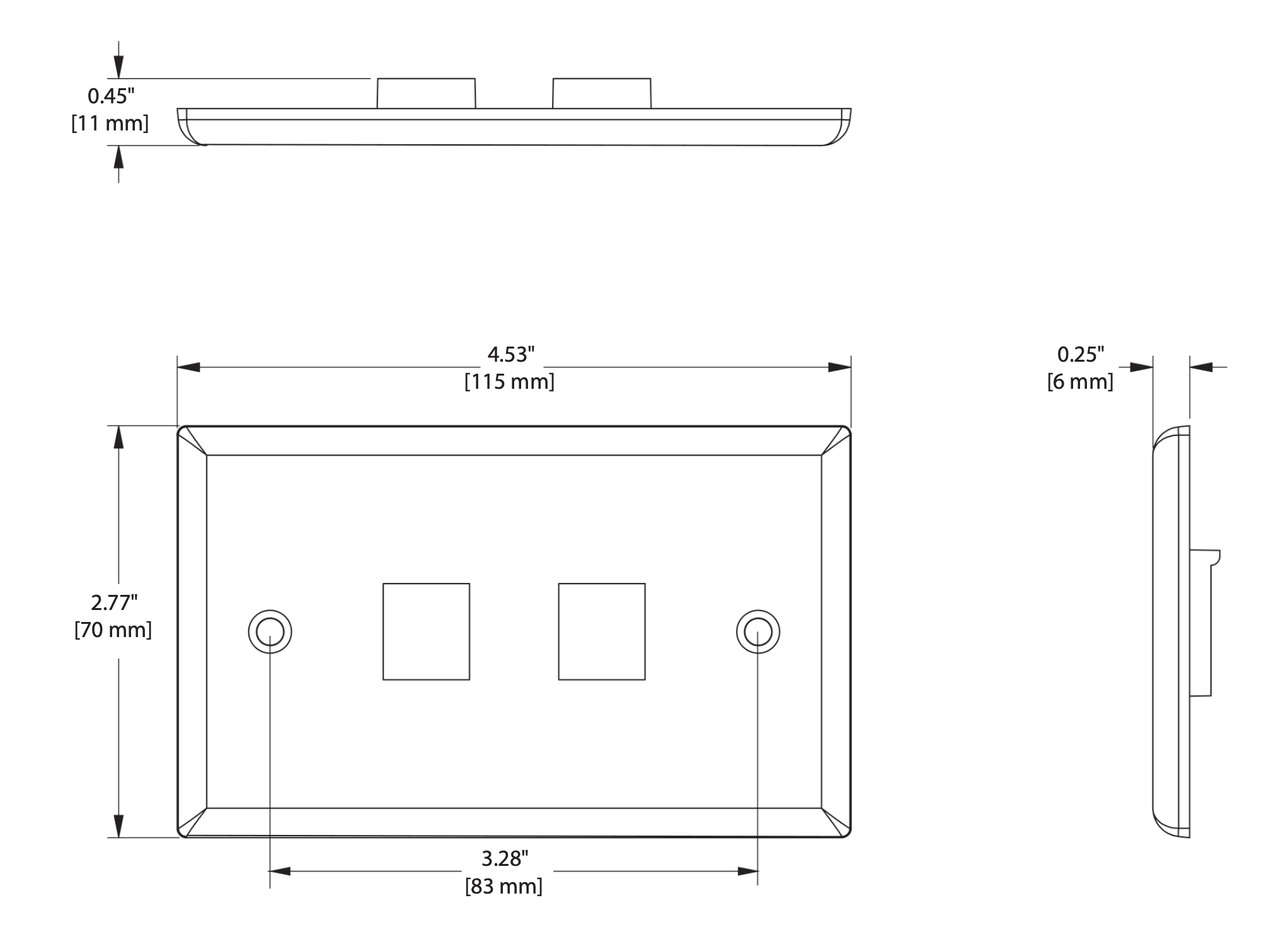

  • Dimensions: See page two of the PDF for drawings and exact dimensions.
  • Standards: cULus Listed (UL1863 & CAN/CSA‑C22.2 No. 182.4), ANSI/TIA‑568‑C.0.
  • Country of Origin: China.
  • Packaging: Wallplates sold empty.

Other Notes

  • Use blank module 41084‑0B* in unused ports for future expansion.
  • Electronic CAD/technical drawings available at (per PDF).

Product Specification

Features and Benefits

  • Horizontal port openings and identification window to match regional installation standards.
  • Includes clear ID window for port designation.
  • Includes color‑matched imperial slotted screws and bright zinc finished metric slotted screws.
  • Fits within minimum rectangular NEMA openings and accommodates low‑voltage box eliminators for a flush mount.
  • Compatible with all individual Leviton QuickPort modules for flexible configurations.
  • Individual port configurability allows specification flexibility for multimedia station applications.

Product Specification Sheet

Download the Sheet
