Leviton OPT‑X SDX Precision Molded Fiber Adapter Plates (5F100‑xxx)

Leviton OPT‑X SDX precision molded fiber adapter plates install in SDX rack‑ and wall‑mount panels and enclosures to connect backbone to backbone or backbone to horizontal fiber cabling. Offered in 6‑, 12‑ and 24‑fiber densities and in LC duplex/quad, SC duplex and ST configurations, each plate uses zirconia ceramic sleeves and standard fiber‑type color coding per ANSI/TIA‑568.3‑E. Integrated adapter and plate construction reduces loose fit and rattle, captive push‑lock pins enable quick tool‑less service, and plates are compatible with all SDX panels and enclosures.

Product Specification

• Construction: Precision‑molded engineered polymer plate; integrated adapter + plate to prevent rattle.
• Densities: 6‑fiber, 12‑fiber, 24‑fiber configurations (duplex and quad LC variants).
• Connector styles: LC duplex/quad, LC/APC, SC duplex, SC/APC, ST. MTP/MT options available in related families.
• Sleeves: Zirconia ceramic sleeves standard (optimized for single‑mode and laser‑optimized multimode performance).
• Color coding: Plate/adapter colors follow ANSI/TIA‑568.3‑E (OM1 beige, OM3/OM4 aqua, OM4 heather violet, OS2 blue, OS2 APC green).
• Mounting: Captive push‑lock pins for tool‑less installation into SDX panels/enclosures; compatible with all SDX rack‑ and wall‑mount systems.
• Environmental: Installation/operating temperature approx. −10 °C to +60 °C.
• Compliance: ANSI/TIA‑568.3‑E performance; ANSI/TIA‑604‑2B/‑3B/‑10C intermateability; RoHS; TAA compliant.
• Country of origin: LC/SC/blank plates — USA; ST plates — Taiwan (as listed).

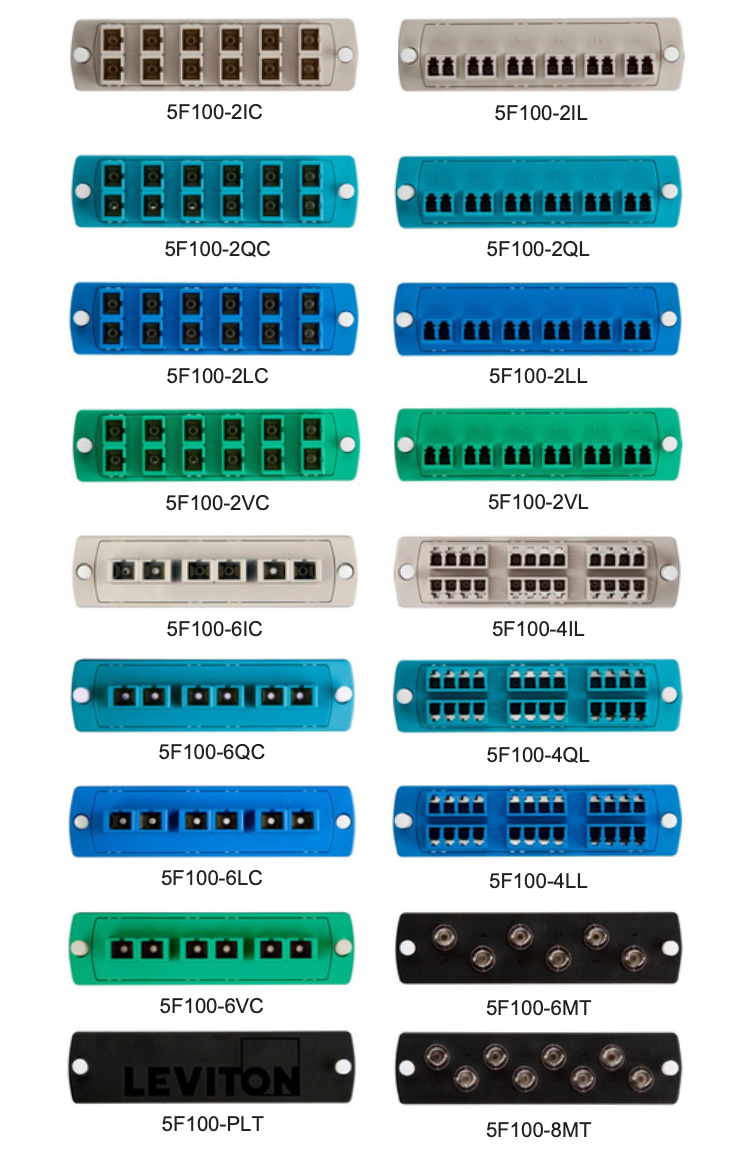

SKU / Product Codes

• 5F100‑2IL — Duplex LC, 12‑fiber, OM1 (beige), zirconia ceramic sleeve
• 5F100‑2QL — Duplex LC, 12‑fiber, OM3/OM4 (aqua), zirconia ceramic sleeve
• 5F100‑2LL — Duplex LC, 12‑fiber, OS2 (blue), zirconia ceramic sleeve
• 5F100‑2VL — Duplex LC/APC, 12‑fiber, OS2 APC (green), zirconia ceramic sleeve
• 5F100‑4IL — Quad LC, 24‑fiber, OM1 (beige), zirconia ceramic sleeve
• 5F100‑4QL — Quad LC, 24‑fiber, OM3/OM4 (aqua), zirconia ceramic sleeve
• 5F100‑4LL — Quad LC, 24‑fiber, OS2 (blue), zirconia ceramic sleeve
• 5F100‑4VL — Duplex SC, 6‑fiber, OM1 (beige), zirconia ceramic sleeve
• 5F100‑6IC — Duplex SC, 6‑fiber, OM3/OM4 (aqua), zirconia ceramic sleeve
• 5F100‑6QC — Duplex SC, 6‑fiber, OS2 (blue), zirconia ceramic sleeve
• 5F100‑6LC — Duplex SC/APC, 6‑fiber, OS2 APC (green), zirconia ceramic sleeve
• 5F100‑6VC — Duplex SC, 12‑fiber, OM3/OM4 (aqua), zirconia ceramic sleeve
• 5F100‑2IC — Duplex SC, 12‑fiber, OM3/OM4 (aqua), zirconia ceramic sleeve (alternate mapping)
• 5F100‑2QC — Duplex SC/APC, 12‑fiber, OS2 APC (green)
• 5F100‑2LC — ST style plates (6‑fiber) — black (MM/SM), zirconia ceramic sleeve
• 5F100‑2VC — ST style (8‑fiber) or blank plate variants
• 5F100‑6MT, 5F100‑8MT — MTP/MT style precision molded options
• 5F100‑PLT — Plate accessory / blank plate option
