Leviton OPT‑X SDX Metal Fiber Adapter Plates (5F100‑xxx)

Metal SDX adapter plates in LC, shuttered LC, MTP, and QuickPort styles; powder‑coated 16‑gauge steel plates with captive push/pull fasteners and zirconia or phosphor bronze sleeves for backbone and horizontal fiber connections.

SKU: 41086‑ML-1-1 Categories: Leviton, Products Tags: 5F100, fiber adapter plate, IP5x, LC adapter, Leviton, metal adapter plate, MTP adapter, OPT-X, phosphor bronze sleeve, QuickPort adapter, SDX, shuttered LC, zirconia sleeve Brand: Leviton

OPT‑X SDX metal fiber adapter plates install in SDX rack‑ or wall‑mount enclosures and Leviton multimedia brackets to provide backbone‑to‑backbone or backbone‑to‑horizontal fiber connections. Plates are constructed of 16‑gauge powder‑coated steel, accept LC (up to 24 fibers), MTP (multi‑port) and QuickPort connector styles, and use zirconia ceramic or phosphor bronze sleeves per fiber type. Shuttered LC plates include patented internal shutters, IP5x dust protection, integrated latching tabs for one‑handed insertion/removal, and color coding for fiber identification. Captive push/pull fasteners enable tool‑less installation and repeatable serviceability.

Product Specification

Construction: 16‑gauge steel mounting plate; powder‑coated black.
Connector styles supported: LC (duplex/quad), shuttered LC, MTP (multi‑port), QuickPort snap‑in modules.
Fiber capacities: LC plates up to 24 fibers; MTP up to 8 ports; QuickPort up to 6 ports.
Sleeve materials: Zirconia ceramic (single‑mode, OM3/OM4/LOMM); phosphor bronze (OM1 multimode).
Shutter rating: LC shuttered plates IP5x per IEC 60529.
Fastening: Captive push/pull fasteners for tool‑less installation; integrated latching tabs for one‑hand insertion/removal.
Color coding: LC adapter colors by fiber type — OM1 (beige), OM3 (aqua), OM4 (aqua/heather violet), OS2 UPC (blue), OS2 APC (green).
Standards: ANSI/TIA‑568.3‑E performance; ANSI/TIA‑604 family intermateability; IEC 60529 IP5x for shutters.
Environmental / mechanical: Temp (installation/operating) approx. −10 °C to +60 °C.
Compliance: RoHS where applicable.

SKU / Product Codes

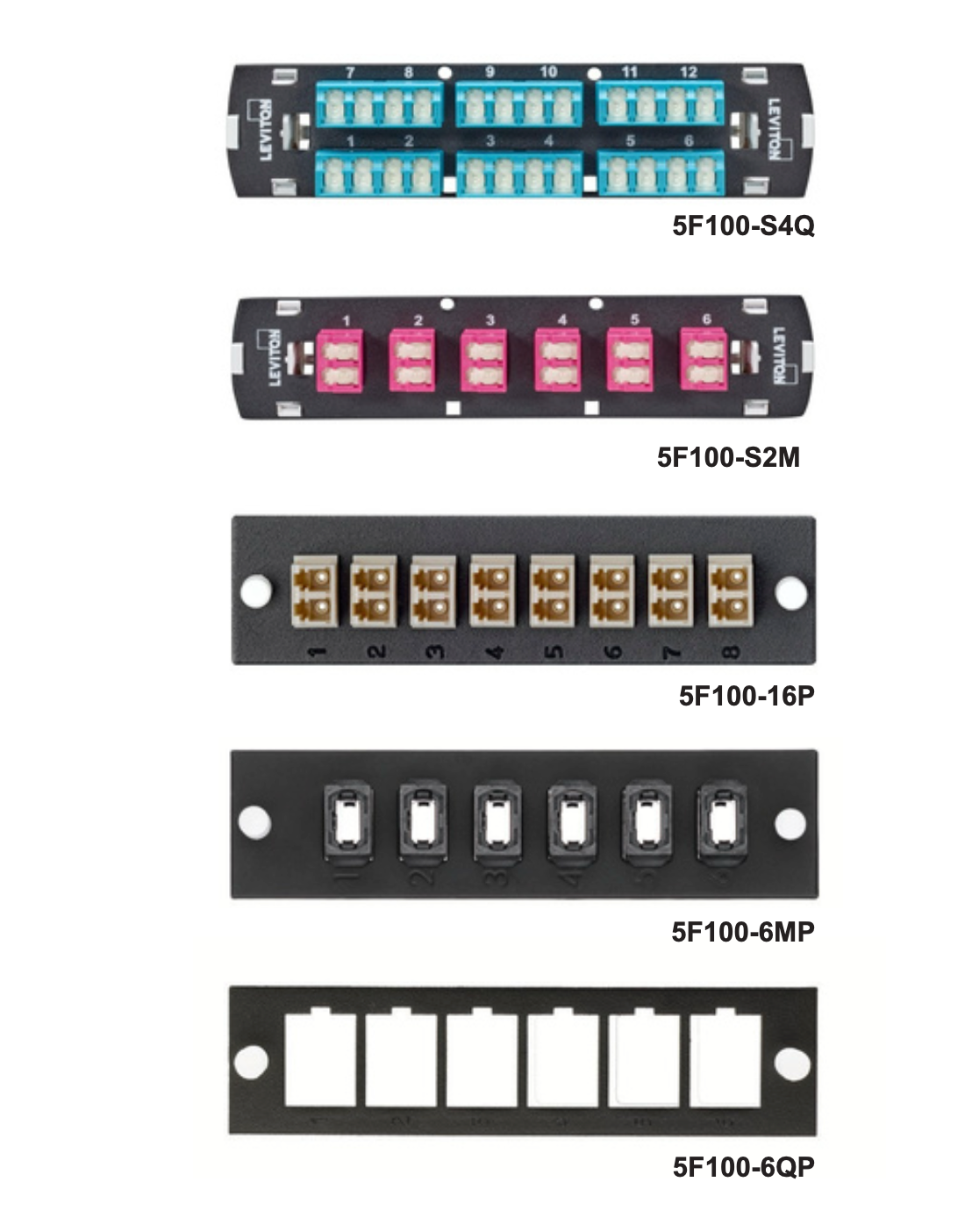

5F100-6QP — 6‑position QuickPort (black) empty plate
5F100-6MP — 6 simplex MTP (black) key up/key down*
5F100-8MP — 8 simplex MTP (black) key up/key up*
5F100-12M — 12‑fiber LC (black) OM3/OM4 duplex LC (aqua), zirconia sleeve
5F100-16P — 16‑fiber LC (black) OM4 duplex LC (heather violet), zirconia sleeve
5F100-16M — 16‑fiber LC (black) OM4 quad LC (heather violet), zirconia sleeve
5F100-16A — 24‑fiber example: OS2 duplex LC (blue) / OM4 quad LC (heather violet) configuration
5F100-16Z — (variant placeholder as listed)
5F100-24M — 24‑fiber LC variant (black)
5F100-S2I — 12‑fiber duplex shuttered LC, OM1 (beige), zirconia sleeve
5F100-S2Q — 12‑fiber duplex shuttered LC, OM3/OM4 (aqua), zirconia sleeve
5F100-S2M — 12‑fiber duplex shuttered LC, OM4 (heather violet), zirconia sleeve
5F100-S2L — 12‑fiber duplex shuttered LC, OS2 (blue), zirconia sleeve
5F100-S2V — 12‑fiber duplex shuttered LC/APC, OS2 APC (green), zirconia sleeve
5F100-S4I — 24‑fiber quad shuttered LC, OM1 (beige), zirconia sleeve
5F100-S4Q — 24‑fiber quad shuttered LC, OM3/OM4 (aqua), zirconia sleeve
5F100-S4M — 24‑fiber quad shuttered LC, OM4 (heather violet), zirconia sleeve
5F100-S4L — 24‑fiber quad shuttered LC, OS2 (blue), zirconia sleeve
5F100-S4V — 24‑fiber quad shuttered LC/APC, OS2 APC (green), zirconia sleeve

Product Specification

Product Specification (Feature and Benefit)

Features

16‑gauge powder‑coated steel plate with captive push/pull fasteners.
LC, shuttered LC, MTP and QuickPort form factors; LC duplex and quad density options.
Zirconia ceramic sleeves for low insertion loss and phosphor bronze option for legacy multimode.
Patented internal shutters in shuttered LC plates with IP5x dust protection and VFL illumination compatibility.
Integrated latching tabs for one‑hand removal and captive hardware for tool‑less serviceability.
MTP keyed options (key up/key down or key up/key up) to match single‑mode APC or multimode needs.
Visible sequential port numbering for Tx/Rx identification; dust plugs/caps installed on final assembly.

Benefits

High mechanical durability and consistent alignment in SDX enclosures for reliable backbone connections.
Low optical loss and repeatable mating from zirconia sleeves, supporting 1 Gbps and higher links.
Shuttered LC reduces contamination and eliminates need for dust plugs, speeding deployment and improving safety.
Tool‑less installation and integrated latches reduce installation time and mean faster field servicing.
MTP keying options prevent APC alignment mistakes and maintain signal integrity for single‑mode links.
Color coding and port numbering simplify port identification, documentation and maintenance.
