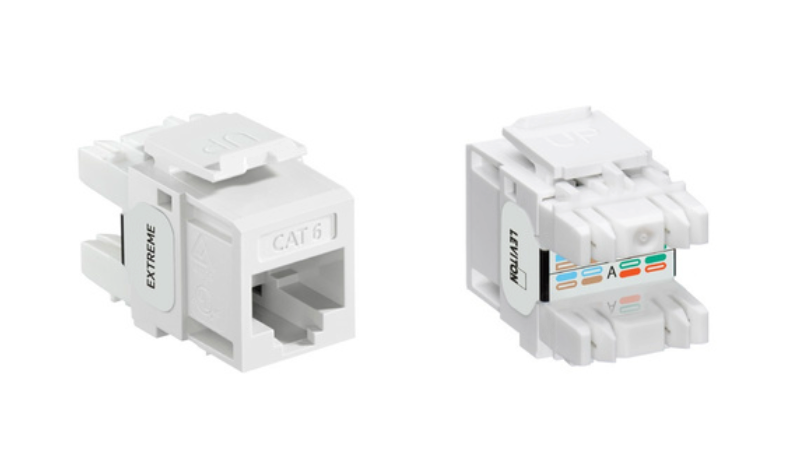

EXTREME™ Cat 6 QUICKPORT jack provides component‑level Cat 6 performance for QUICKPORT‑compatible housings, panels, and faceplates. Features patented Retention Force Technology (RFT) that protects contact tines and extends system longevity, pair separation towers for faster terminations, and a 180° rear termination field with 110‑style IDC. Gas‑tight IDCs prevent corrosion and permit multiple re‑terminations; a snap‑on dust cap with high pullout force is included.
Mechanical / Environmental
- Termination: 110‑style IDC rear termination; universal T568A/T568B wiring.
- Conductor range: Terminates 26–22 AWG solid; 24–22 AWG stranded; 26 AWG stranded re‑terminatable up to five times.
- Materials: Connector body — fire‑retardant plastic rated UL 94V‑0; contacts — phosphor bronze plated with 50 µin gold over ~130 µin nickel.
- Operating temp: −10 °C to +60 °C.
- Storage temp: −40 °C to +70 °C.
- Humidity: up to 95% RH, non‑condensing.
Standards & Compliance
- ANSI/TIA‑568.2 (Cat 6);ISO/IEC 11801‑1 (Class E);EN 50173‑1 (Class E);ANSI/TIA‑1096‑A;IEC 60603‑7;IEC 60512‑99‑002;c(UL)us Listed (UL 1863);UL 2043 Plenum Certified;IEEE 802.3bt PoE Type 1–4 support;ETL verification for IEC 60512‑99‑002 PoE Type 4 support.
Packaging / Ordering Notes
- Single‑pack colors available for immediate ordering; select colors and pack formats (25, 150, 200) shown in SKU table.
- GREENPACK 200‑pack offers sustainably smart packaging with reduced single‑use plastics.
- Snap‑in jack sold empty for use in QuickPort faceplates, panels, and modules; compatible blank part for unused ports: 41084‑0B* (install blanks for future expansion).
Country of Origin and Warranty
- Country of Origin: USA.
- Warranty: See Leviton product warranties at .

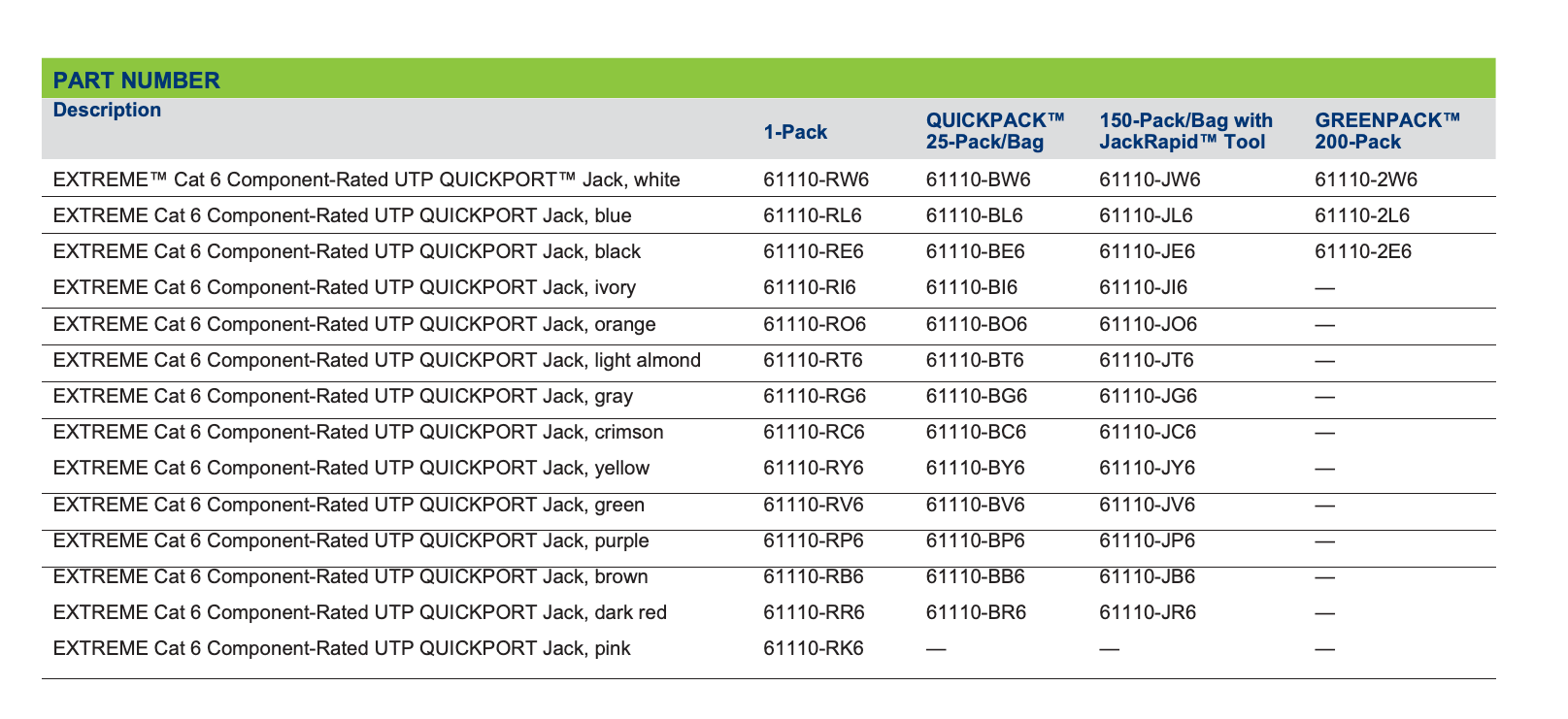

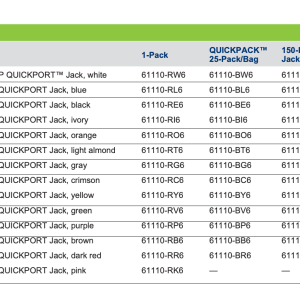

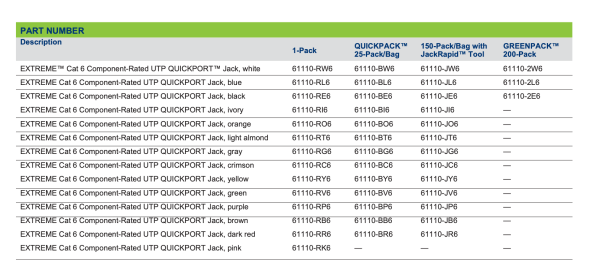

SKU / Part Numbers
- 1‑Pack (single): 61110‑RW6 (white), 61110‑RL6 (blue), 61110‑RE6 (black), 61110‑RI6 (ivory), 61110‑RO6 (orange), 61110‑RT6 (light almond), 61110‑RG6 (gray), 61110‑RC6 (crimson), 61110‑RY6 (yellow), 61110‑RV6 (green), 61110‑RP6 (purple), 61110‑RB6 (brown), 61110‑RR6 (dark red), 61110‑RK6 (pink).
- QuickPack 25/Bag: 61110‑BW6 (white), 61110‑BL6 (blue), 61110‑BE6 (black), 61110‑BI6 (ivory), 61110‑BO6 (orange), 61110‑BT6 (light almond), 61110‑BG6 (gray), 61110‑BC6 (crimson), 61110‑BY6 (yellow), 61110‑BV6 (green), 61110‑BP6 (purple), 61110‑BB6 (brown), 61110‑BR6 (dark red).
- 150‑Pack with JackRapid tool: 61110‑JW6 (white), 61110‑JL6 (blue), 61110‑JE6 (black), 61110‑JI6 (ivory), 61110‑JO6 (orange), 61110‑JT6 (light almond), 61110‑JG6 (gray), 61110‑JC6 (crimson), 61110‑JY6 (yellow), 61110‑JV6 (green), 61110‑JP6 (purple), 61110‑JB6 (brown), 61110‑JR6 (dark red).
- GREENPACK 200‑Pack: 61110‑2W6 (white), 61110‑2L6 (blue), 61110‑2E6 (black), 61110‑2?6 (others as available).
