Leviton – Cat 6 UTP Patch Cords (6D460-xxx)

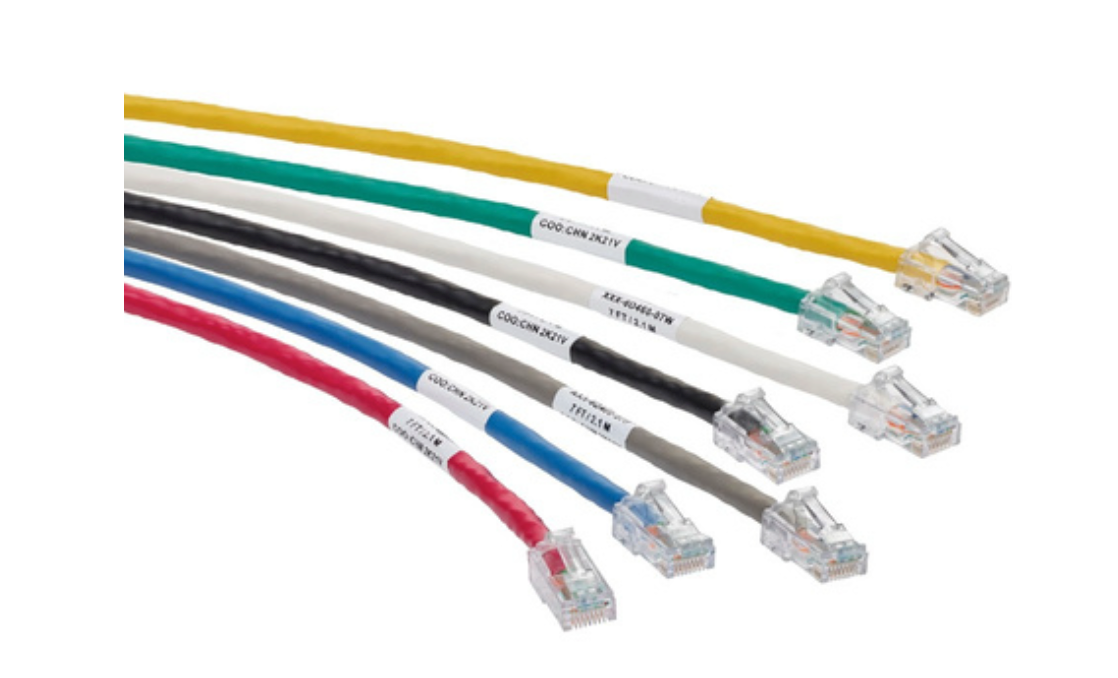

Cat 6 UTP stranded patch cords with compact snagless plugs and narrow-profile boot, available in seven standard lengths and multiple colors.

SKU: 42070‑3WS-1 Categories: , Tags: , , , , , , , , , , , , Brand:

Cat 6 UTP Patch Cords meet Cat 6 channel and link transmission requirements, use 24 AWG stranded conductors with 8-position modular plugs on each end, feature a narrow-profile snagless boot and integrated strain relief, and are available in standard lengths of 1, 3, 5, 7, 10, 15, and 20 feet.

Physical / Mechanical Specifications

  • Conductor: 24 AWG stranded.

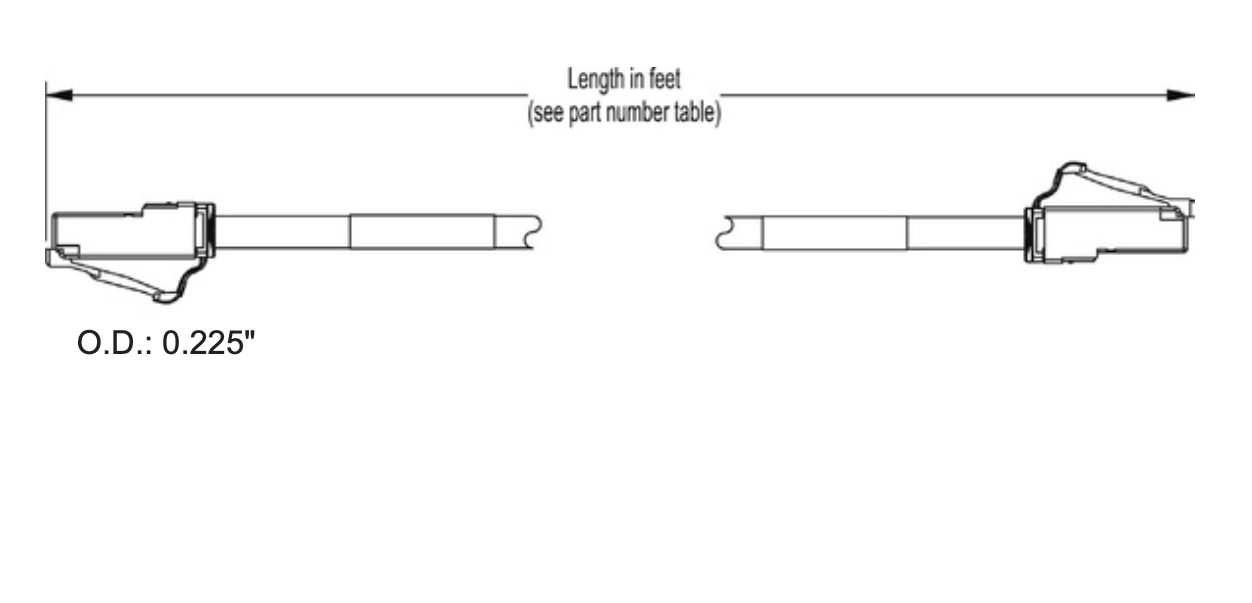

  • Outer diameter: 0.225″.
  • Plug: modular non-keyed 8-position, clear plug with 50 micro‑inches gold plating per ANSI/TIA-1096-A.
  • Stocked colors: white, yellow, red, blue, green, gray, black.
  • Standard lengths: 1, 3, 5, 7, 10, 15, 20 feet.
  • Temperature (Storage): -20 °C to +70 °C.
  • Temperature (Installation): 0 °C to +50 °C.
  • Temperature (Operating): -20 °C to +60 °C.
  • UL voltage rating: 300 V.
  • Note: Additional colors and custom lengths available; contact Customer Service.

Standards & Regulations

ANSI/TIA-568.2, ISO/IEC 11801-1, EN 50173-1, ANSI/TIA-1096-A, UL 444 CM Rated, IEEE 802.3 PoE Type 1–4 (100 W max), Cisco UPOE/UPOE+ (90 W max), Power over HDBaseT PoH (95 W max), c(UL)us Listed (UL 1863), RoHS 3.

Country of Origin : China

Warranty Information

Limited product and limited extended warranties apply; warranties are void if PoE use exceeds product power rating. For Leviton product warranties go to .

SKU (Available)

6D460-01W, 6D460-01Y, 6D460-01R, 6D460-01L, 6D460-01G, 6D460-01S, 6D460-01E, 6D460-03W, 6D460-03Y, 6D460-03R, 6D460-03L, 6D460-03G, 6D460-03S, 6D460-03E, 6D460-05W, 6D460-05Y, 6D460-05R, 6D460-05L, 6D460-05G, 6D460-05S, 6D460-05E, 6D460-07W, 6D460-07Y, 6D460-07R, 6D460-07L, 6D460-07G, 6D460-07S, 6D460-07E, 6D460-10W, 6D460-10Y, 6D460-10R, 6D460-10L, 6D460-10G, 6D460-10S, 6D460-10E, 6D460-15W, 6D460-15Y, 6D460-15R, 6D460-15L, 6D460-15G, 6D460-15S, 6D460-15E, 6D460-20W, 6D460-20Y, 6D460-20R, 6D460-20L, 6D460-20G, 6D460-20S, 6D460-20E

Product Specification

Features and Benefits

  • Tested and verified to meet Cat 6 component requirements for TIA, ISO/IEC, and EN standards.
  • Compact plug and boot promotes shorter installed bend radius for limited depth applications.
  • Snagless plug design prevents tab breakage.
  • Integrated strain-relief.
  • Stranded conductor for longer flex-life.
  • T568B wiring to function in T568A or T568B applications.
  • Backwards compatible with earlier ANSI/TIA category ratings.
  • Channel performance verified by third‑party testing in 4‑connector, 100‑meter channel.
  • Accepts clip-on colored boot markers for network identification.
  • Compatible with Leviton Secure RJ system.
