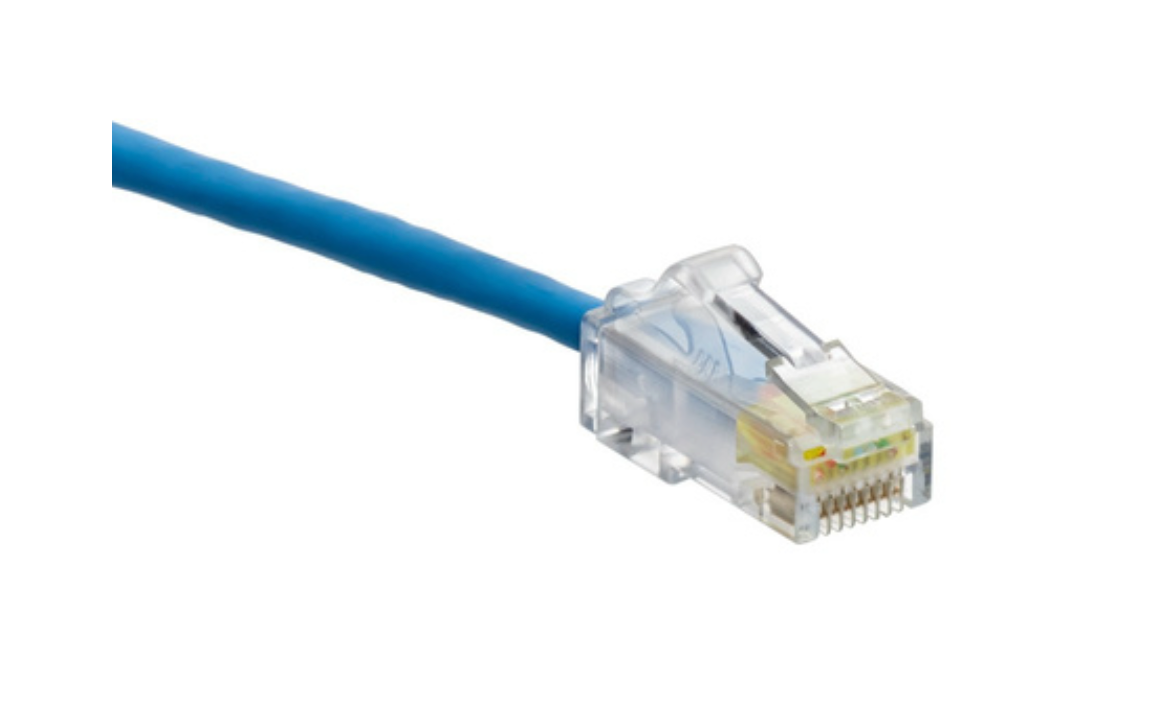

Leviton – Cat 6 Small Diameter High‑Flex Patch Cords (6H460 / 6H4P0 series)

28 AWG small‑diameter Cat 6 high‑flex patch cords, 0.15″ (3.8 mm) OD, compact snagless plugs, available 0.5 ft–20 ft, multiple colors, GREENPACK sustainable bulk options.

SKU: 42070‑3WS-1-1 Categories: , Tags: , , , , , , , , , , , , , , , , Brand:

Cat 6 Small Diameter High‑Flex Patch Cords are 28 AWG stranded UTP cords designed for 1‑Gigabit applications across 1–250 MHz. They feature a compact plug and boot for high‑density patching, a narrow 0.60″ (15.2 mm) bend radius, snagless plug design, integrated strain relief, and plug contacts rated to 2,500 mating cycles. Cords are dual‑rated (CM/LSZH), available in a wide range of lengths and colors, and offered in GREENPACK sustainably smart bulk packaging options.

Mechanical / Environmental

  • Conductor: 28 AWG stranded UTP.

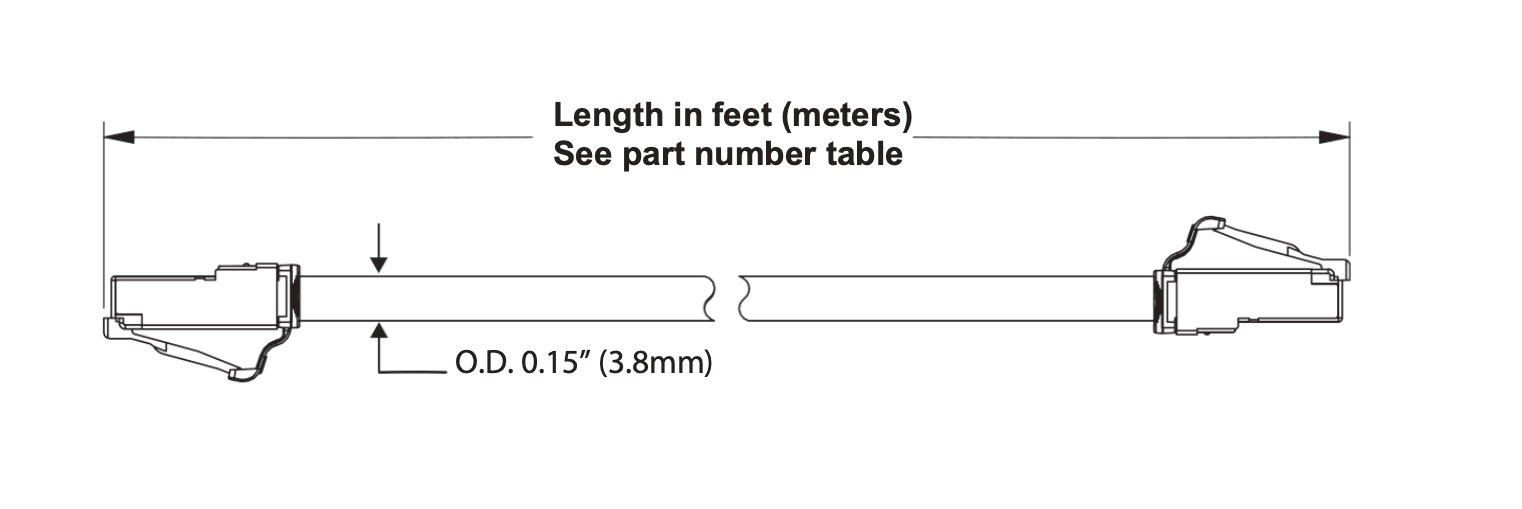

  • Cable outer diameter: 0.15 in (3.8 mm).
  • Bend radius: 0.60 in (15.2 mm).
  • Temperature (Storage): −20 °C to +60 °C.
  • Temperature (Installation): 0 °C to +50 °C.
  • Temperature (Operating): −20 °C to +50 °C.
  • UL voltage rating: 300 V.
  • Plug contact plating: minimum 50 micro‑inches gold; rated to 2,500 mating cycles (per specification).
  • Supports 96‑meter channels including 90‑meter permanent links or 93‑meter channels with 10 m patch cords included (per design notes).

Standards & Regulations

ANSI/TIA‑568.2, ISO/IEC 11801‑1, EN 50173‑1, ANSI/TIA‑1096‑A, RoHS compliant, UL 444 ‑ CM, IEC 60603‑7, IEC 60332‑1, IEC 60754, IEC 61034, IEEE 802.3 PoE Type 1–4 (100 W), Cisco UPOE/UPOE+ (90 W), Power over HDBaseT PoH (95 W), IEC 60512‑99‑002 unmating under electrical load compliance.

Packaging / Bulk Options

  • GREENPACK bulk packs: various 12‑ or 24‑count pack SKUs (6H4P0 / 6H4PI) per PDF tables.
  • North America/Latin America individual SKUs for single cords across many lengths and colors per PDF tables.
  • Europe/Middle East/APAC pack SKUs and single SKUs listed in PDF.

Notes :

  • Other lengths and colors available by special order; lengths 3–20 ft are component rated; all other lengths are channel rated (per PDF).
  • Observe PoE bundle size/separation guidance per TIA TSB‑184‑A for 100 W applications (as listed).

SKU Available:

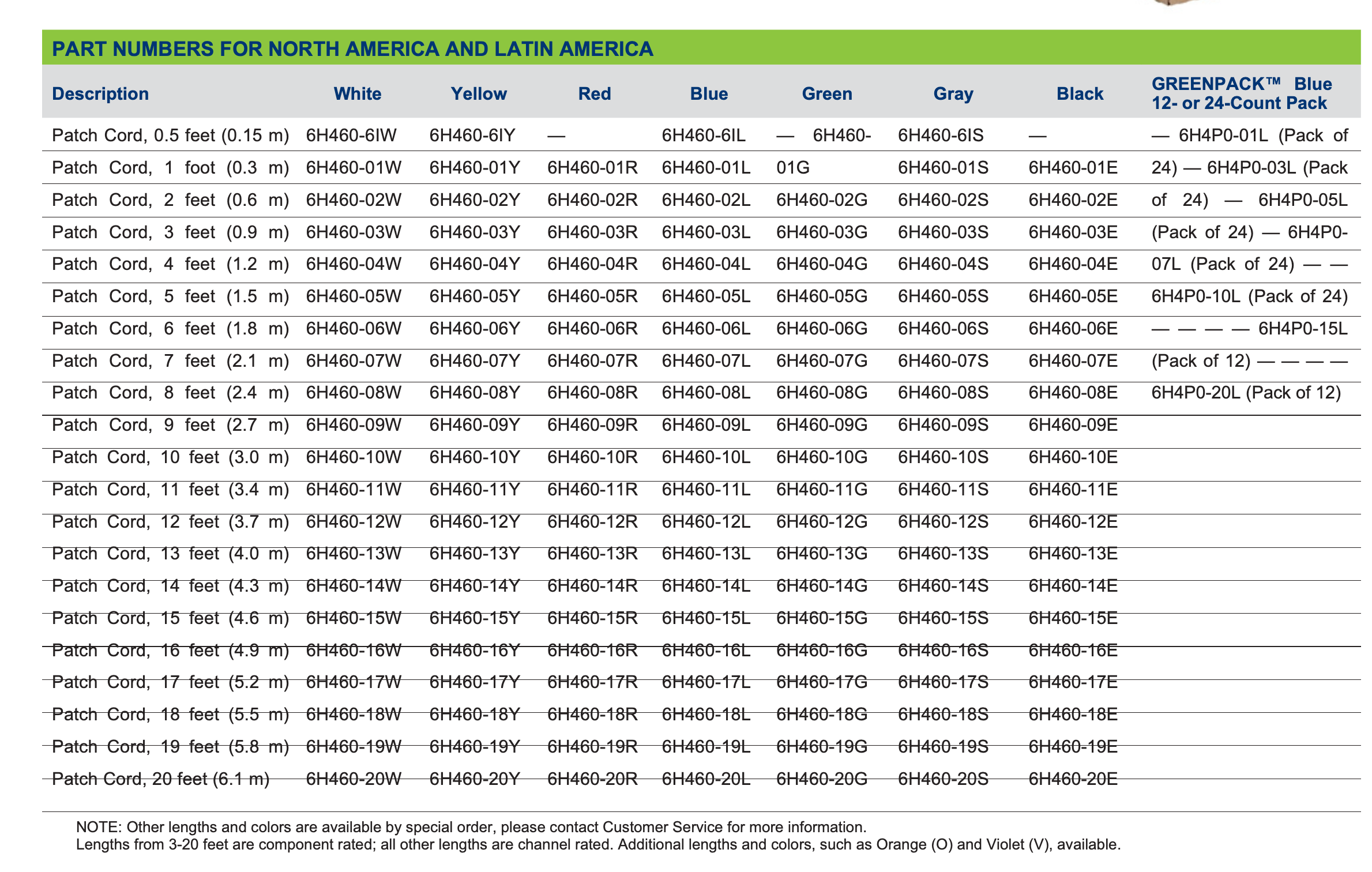

  • North America / Latin America sample SKUs (6H460 series): 6H460-6IW, 6H460-01W, 6H460-02W … up to 6H460-20W (white variants) and equivalent color codes for yellow, red, blue, green, gray, black as listed in PDF.

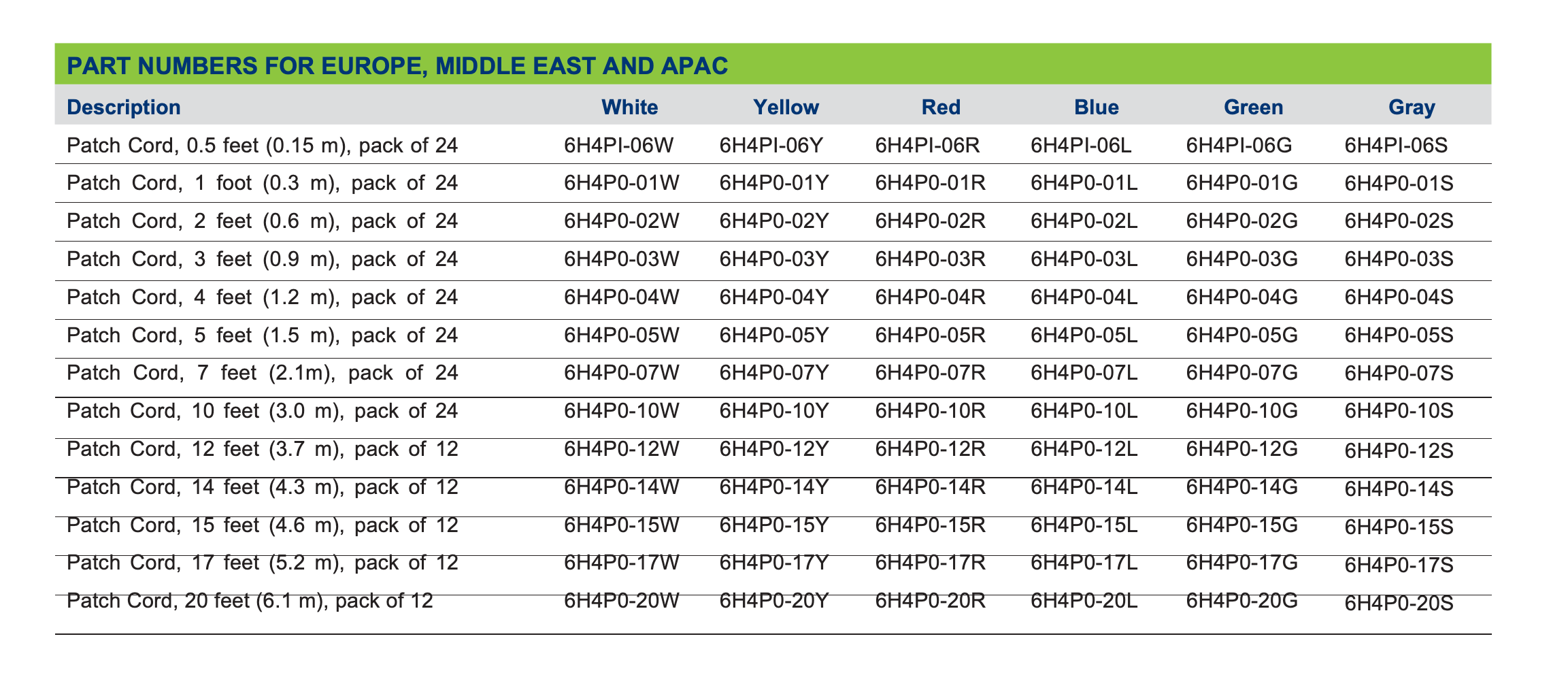

  • Europe / EMEAP SKUs (6H4P0 / 6H4PI packs): 6H4P0-01W, 6H4P0-02W, 6H4P0-03W, … 6H4P0-20W; pack SKUs such as 6H4P0-03L (pack of 24), 6H4P0-10L (pack of 24), 6H4P0-07L (pack of 24), 6H4P0-12W (pack of 12) as listed in PDF.
  • Note: Full SKU tables for all lengths and colors are provided in the PDF (North America/Latin America and Europe/Middle East/APAC tables).

Product Specification

Features and Benefits

  • Available in white, yellow, gray, black, red, green, and blue — supports color coding and organization.
  • Stock lengths from 6 in (0.15 m) and 1–20 ft (0.3–6.0 m) in 1‑ft increments — flexible length choices.
  • Compact plug and boot for shorter installed bend radius — ideal for limited depth/high‑density applications.
  • Narrow bend radius 0.60 in (15.2 mm) vs typical 1.0 in — reduces cable management footprint.
  • Snagless plug design prevents tab breakage — improves reliability during moves/adds/changes.
  • Integrated strain‑relief — protects conductor termination.
  • Plug contacts rated to 2,500 mating cycles — longevity in frequent‑change environments.
  • Dual‑rated cable jacket (CM/LSZH) — broadened application compatibility.
  • Supports PoE up to IEEE 802.3 Type 4 (100 W) with bundle size/separation guidance per TIA TSB‑184‑A — power delivery capable per PDF.
  • GREENPACK sustainable bulk packaging options reduce jobsite waste and eliminate single‑use plastics — faster deployment and improved sustainability.
  • Living Building Challenge Red List Free product (as listed).
