Leviton – ADVENTUM™ 12-96F Euroclass B2ca Cable

12–96 fiber loose‑tube, gel‑free, dry water‑blocked backbone/riser cable with HFFR‑LS sheath, Euroclass B2ca s1a d1 a1.

Categories: Leviton, Products Tags: 12-96F, ADVENTUM, backbone, bend insensitive, CE CPR, dry water-blocked, Euroclass B2ca, gel free, glass yarns, HFFR-LS, loose tube, OM3, OM4, OM5, OS2, resin-bonded glass central strength member, riser, UK origin Brand: Leviton

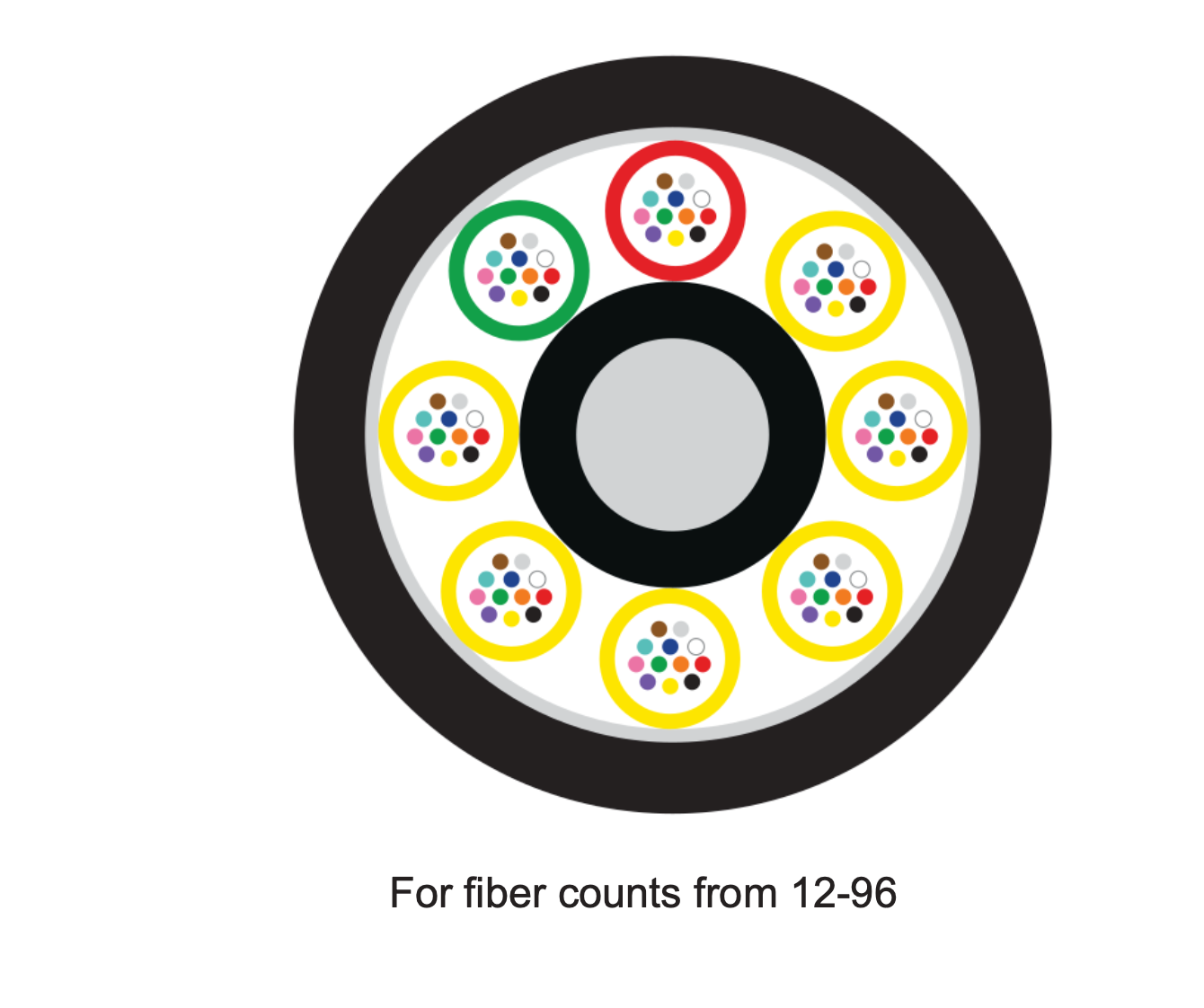

Leviton ADVENTUM B2ca cables provide 12 to 96 fibers in a compact, dry water‑blocked, gel‑free loose‑tube construction for high‑density campus, in‑building backbone, vertical riser, and data center installations. Cables use bend‑insensitive single‑mode and multimode fibers, a resin‑bonded glass central strength member, HFFR‑LS outer sheath, glass yarns, and comply with EN 13501‑6 Euroclass B2ca for life‑safety fire performance.

SKU / Part Numbers

Part number prefix: GFxxxADTyyWRRLU-B2ca
Sample part number: GF OM4 ADT 96 W RR LU – B2ca

Packaging part numbers:

GFxxxADTyyWRRLU-B2ca (used for 12–48, 72, 96 fiber counts in tables).

Product Specification

Features and Benefits

Fiber counts: 12–96 fibers, color‑coded per TIA‑598‑D.
Bend insensitive fiber: Standard for Single‑Mode, OM3, OM4, OM5.
Central strength member: Resin‑bonded glass central strength member for flexibility and high strength‑to‑weight ratio.
Sheath: Enhanced Halogen‑Free Flame‑Retardant Low‑Smoke (HFFR‑LS), black, UV stable.
Euroclass: B2ca meets requirements of Cca, Dca, and Eca; CE marked for CPR.
Water blocking: Multiple dry water‑blocked tube construction with red and green marker reference; gel‑free to reduce termination time and eliminate solvents.
Interstitial protection: Interstitially dry water‑blocked design to prohibit water ingress through cable length.
Reinforcement: Glass yarns provide high tensile strength and moderate rodent protection.

Product Specification Sheet

Download the Sheet

Technical Specifications

Type of cable: Loose Tube.
Jacket material: HFFR‑LS.
Temperature (Storage): −40 °C to +75 °C (−40 °F to +167 °F).
Temperature (Installation): −5 °C to +50 °C (+23 °F to +122 °F).
Temperature (Operating): −40 °C to +75 °C (−40 °F to +167 °F).

Reaction to fire / CPR:

Single cable flame rating: IEC 60332‑1‑2 / EN 60332‑1‑2 — Pass.
Bundled cable flame rating: IEC 60332‑3‑24 / EN 60332‑3‑24 — B2ca s1a d1 a1.
Cable flame rating (EN 50399): B2ca s1a d1 a1.
Smoke emission / flaming droplets / acid gas emission: Tested per EN 50399 / EN 50267‑2‑3 / IEC 60754‑2 (tables shown).

Mechanical / dimensional (summary by fiber count):

12–48: Max long term load 240 N; max short term 790 N; nominal cable diameter 8.9 mm; weight 80 kg/km.
72: Max long term load 250 N; max short term 840 N; nominal cable diameter 9.4 mm; weight 85 kg/km.
96: Max long term load 330 N; max short term 1100 N; nominal cable diameter 10.6 mm; weight 110 kg/km.
Bend radius: Min static 7.5 × cable diameter; min dynamic 10 × cable diameter.
Max crush: 1000 N (where indicated).
Max impact: 10 Nm.
Max torsion: 10 turns (±180°).
Nom. tube diameter examples: 2.0 mm (where shown).

Optical performance (selected values):

Fiber identifiers / references: IEC 60793 references (e.g., 2‑50‑B6_a for SM G.657 variants; 2‑10‑A1a.* for OM3/OM4/OM5).
Bandwidth @850 nm: OM3 ≥2000 MHz·km; OM4/OM5 ≥4700 MHz·km.
Overfilled launch @850 nm: OM3 ≥1500 MHz·km; OM4/OM5 ≥3500 MHz·km.
Multimode attenuation: ≤2.80 dB/km @850 nm; ≤0.80 dB/km @1300 nm.
Single‑mode attenuation examples: ≤0.38 dB/km @1310 nm; ≤0.25 dB/km @1550 nm.

Packaging

Reel size (flange x width mm): 1200 x 690 for 2 km and 4 km reels (per fiber count rows).
Gross weight (kg/reel): 12–48: 2 km = 220 kg, 4 km = 375 kg; 72: 2 km = 239 kg, 4 km = 412 kg; 96: 2 km = 285 kg, 4 km = 545 kg.
Reels per pallet: 1.

Standards & Regulations

ISO/IEC 11801.
IEC 60794 (including referenced parts).
BS EN 50173‑1.
IEC 60794‑1‑21 and IEC 60794‑1‑22.
IEC 60794‑1‑22‑F5C.
EN 13501‑6 (Euroclass B2ca).
CE marked for CPR.

Country of Origin

United Kingdom (UK)
