Leviton - 86 mm x 86 mm 2‑Port Stainless‑Steel Wallplate (BI186‑S2P)

Leviton – 86 mm x 86 mm 2‑Port Stainless‑Steel Wallplate (BI186‑S2P)

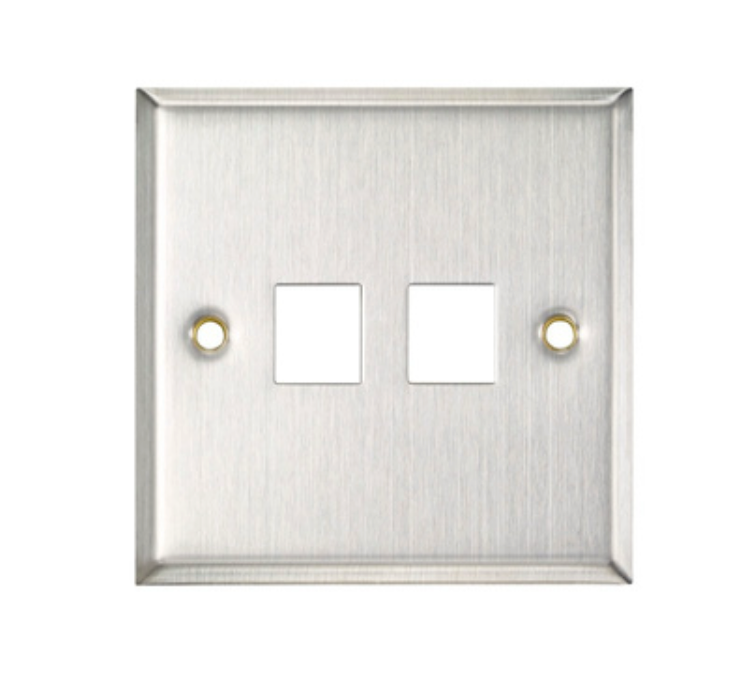

Brushed 86 × 86 mm stainless‑steel single‑gang wallplate, 2 QuickPort® openings, field‑configurable for British standard back boxes.

Leviton 86 mm × 86 mm 2‑Port Stainless‑Steel Wallplate accepts QuickPort snap‑in connectors and adapters for commercial and residential applications. The brushed stainless‑steel face with ABS carrier is field‑configurable, supports port identification with colored connectors or designation labels, and is designed for installation in BS 4662 flush‑mount and BS 5733 surface‑mount electrical boxes.

Materials: Face — Stainless Steel (type 304); Carrier — ABS Plastic.
Country of Origin: Taiwan.
Dimensions: Refer to page two of the PDF for drawings and exact dimensions.
Design notes: For future expansion install blanks (41084‑BxB); use colored connectors or Leviton Port Designation Labels (51084‑xLB or 41080‑LEB) for port identification.
Warranty: For Leviton product warranties, visit .

Product Specification

Features and Benefits

Compatible with all individual QuickPort connectors and adapters — supports flexible module selection.
Individual port configurability — allows specification flexibility and future changes.
Brushed stainless‑steel finish (type 304 face) — durable, aesthetic surface.
86 mm × 86 mm size conforms to BS 4662 and BS 5733 electrical box standards — fits British standard back boxes.
Carrier made of ABS plastic — secure module support.

Product Specification Sheet

Download the Sheet
