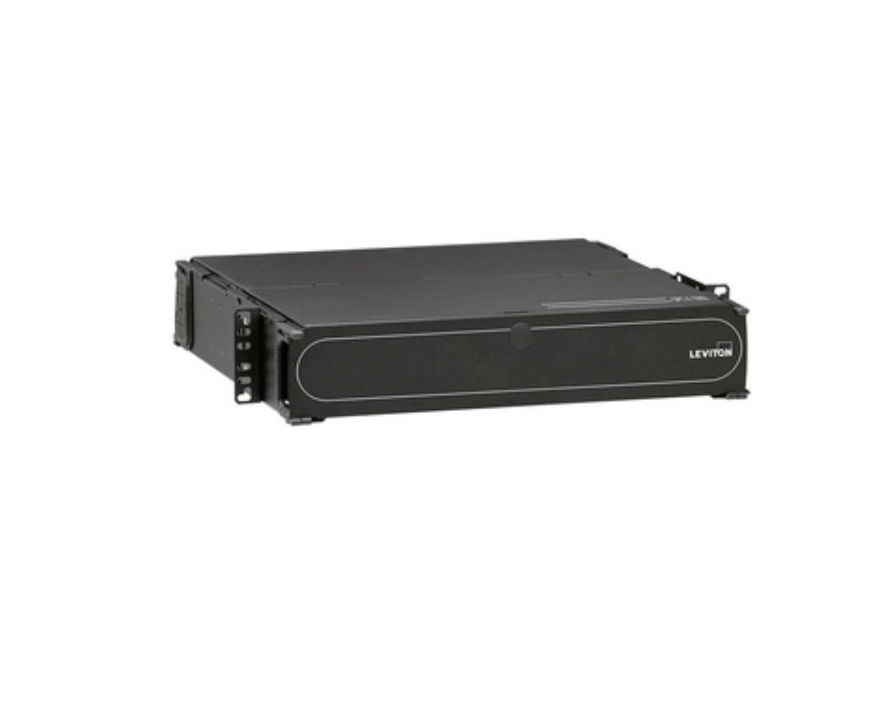

Leviton - 5R2UM-S06 OPT-X 1000i SDX 2RU Distribution and Splice Enclosure

Leviton – 5R2UM-S06 OPT-X 1000i SDX 2RU Distribution and Splice Enclosure

Empty 2RU rack-mount SDX distribution and splice enclosure with sliding tray; accepts up to six SDX adapter plates or six SDX MTP cassettes and up to six splice trays

The OPT-X 1000i SDX 2RU Rack-Mount Enclosure provides inter-connect or cross-connect between backbone cable and active equipment while minimizing rack space. Designed for easy field termination, splicing, or pre-terminated plug‑and‑play solutions, the enclosure is used in data centers, equipment rooms, and telecommunication rooms. The unit ships empty and includes a sliding tray for front and rear bulkhead access after installation.

Application / Intended Use

Inter-connect or cross-connect between backbone cable and active equipment in frame or cabinet settings.
Field termination of connectors, splicing, or pre-terminated plug‑and‑play solutions in data centers, equipment rooms, and telecommunication rooms.

Accepts / Capacity

Accepts up to 6 SDX adapter plates or 6 SDX MTP cassettes.
Accepts up to 6 splice trays.

Construction / Materials

16-gauge steel, powder-coated black.

Patents

MX400781

SKU: 5R2UM-S06

UPC: 078477516874

Color: Black

Product Specification

Features and Benefits

15-inch depth — enables high-density fiber termination and splicing.
Stackable and adjustable fiber rings — simplify cable organization.
Front saddles pivot — improve patch cord routing.
Removable front and rear covers — provide better access to the enclosure interior.
Removable rubber grommet — allows pre-terminated fiber trunk install, protects cable, and minimizes dust build-up.
Sliding tray — glides forward and backward for front and rear bulkhead access and removes completely for ease of field terminations and splicing.
Constructed of 16-gauge steel, powder-coated black — durable rack hardware.
Retrofit sliding trays available (sold separately) — allow higher-density applications using HDX MTP Cassettes or HDX Adapter Plates; note sliding tray does not accommodate splice trays.
Convertible to HDX cassettes or adapter plate — using conversion bracket sold separately.
