DENALI™ MPO Trunk Assemblies

DENALI™ MPO Trunk Assemblies

DENALI™ MPO Trunk Assemblies feature superior optical and mechanical properties such as multimode MTP® PRO connectors, allowing for low-loss MPO connectivity for various applications. Available with Base-8, Base-12, Base-16 and Base-24 male or female connectors assure low insertion losses and power penalties in tight power budget, high-speed network environments.

This product includes: Optional pulling eye for easier installation, Pre-defined breakout lengths reduce design complexity, Reduced diameter MicroCore cable with 2.0 mm subunits (up to 144 fibers), Integrated Outback Clip mates directly with the trunk cable management area in all DENALI Housings.

Category:

Description

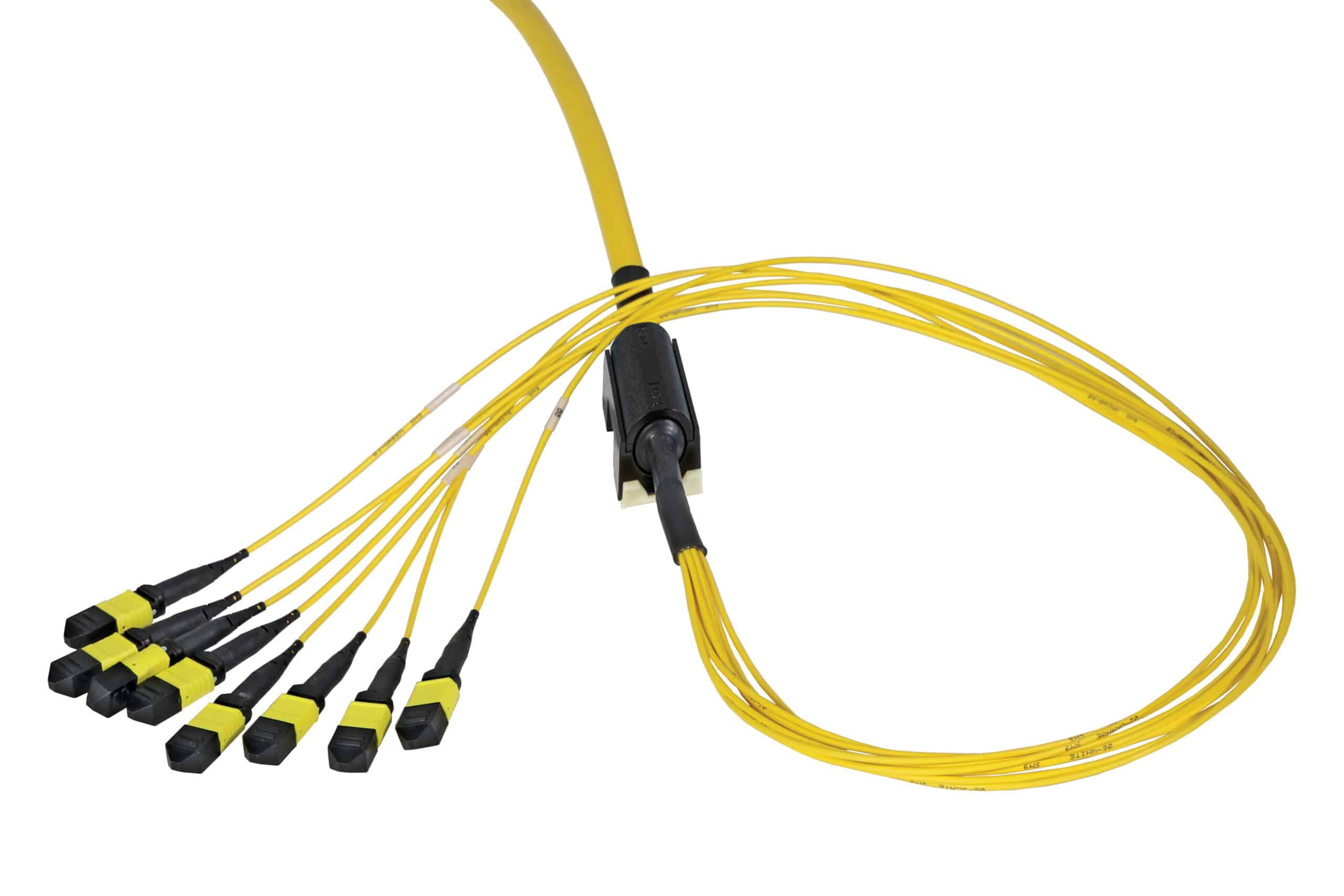

DENALI™ MPO Trunk Assemblies provide high-performance, scalable plug-and-play connectivity ideal for high-density data center applications. Built around a reduced-diameter MicroCore® cable, these trunks offer excellent bend tolerance and airflow efficiency ideal for routing through raceways, ducts, cable trays, and conduits in space-constrained environments. DENALI trunks are available in Base-8, Base-12, Base-16 and Base-24 configurations to align with various network architectures. All connectors feature high-quality optical and mechanical properties for reliable performance.

Key Features

  • Low-Loss MPO Connectivity
    • Polarity options available for various applications
    • MPO interface available with male or female connectors
    • Base-8, Base-12, Base-16 and Base-24 connectors available
    • MPO components feature superior optical and mechanical properties
    • MTP® PRO connectors include field-reversible polarity and gender (multimode only)
    • Low-loss Premium MPO connectors assures low insertion losses and power penalties in tight power budget, high-speed network environments

    Installation-Friendly Design

    • Optional pulling eye for easier installation
    • Pre-defined breakout lengths reduce design complexity
    • Reduced diameter MicroCore cable with 2.0 mm subunits (up to 144 fibers)
    • Integrated Outback Clip mates directly with the trunk cable management area in all DENALI Housings

Specifications

CONNECTOR CONNECTOR ORDERING CODE CONNECTOR HOUSING COLOR FIBER TYPE CABLE JACKET COLOR IL (TYPICAL db) IL (MAX. dB) REFLECTANCE (TYPICAL dB)
8F MPO Low Loss (unpinned) EEF Yellow Single-mode G.657.A1 (BIF) Yellow 0.1 0.35 -60
8F MPO Low Loss (pinned) EEM Yellow Single-mode G.657.A1 (BIF) Yellow 0.1 0.35 -60
8F MTP Pro (unpinned) PFEF Aqua 50 μm OM3, OM4 Aqua 0.1 0.35 -20
8F MTP Pro (pinned) PFEM Aqua 50 μm OM3, OM4 Aqua 0.1 0.35 -20
12F MPO Low Loss (unpinned) ETF Yellow Single-mode G.657.A1 (BIF) Yellow 0.1 0.35 -60
12F MPO Low Loss (pinned) ETM Yellow Single-mode G.657.A1 (BIF) Yellow 0.1 0.35 -60
12F MTP Pro (unpinned) PFTF Aqua 50 μm OM3, OM4 Aqua 0.1 0.35 -20
12F MTP Pro (pinned) PFTM Aqua 50 μm OM3, OM4 Aqua 0.1 0.35 -20
