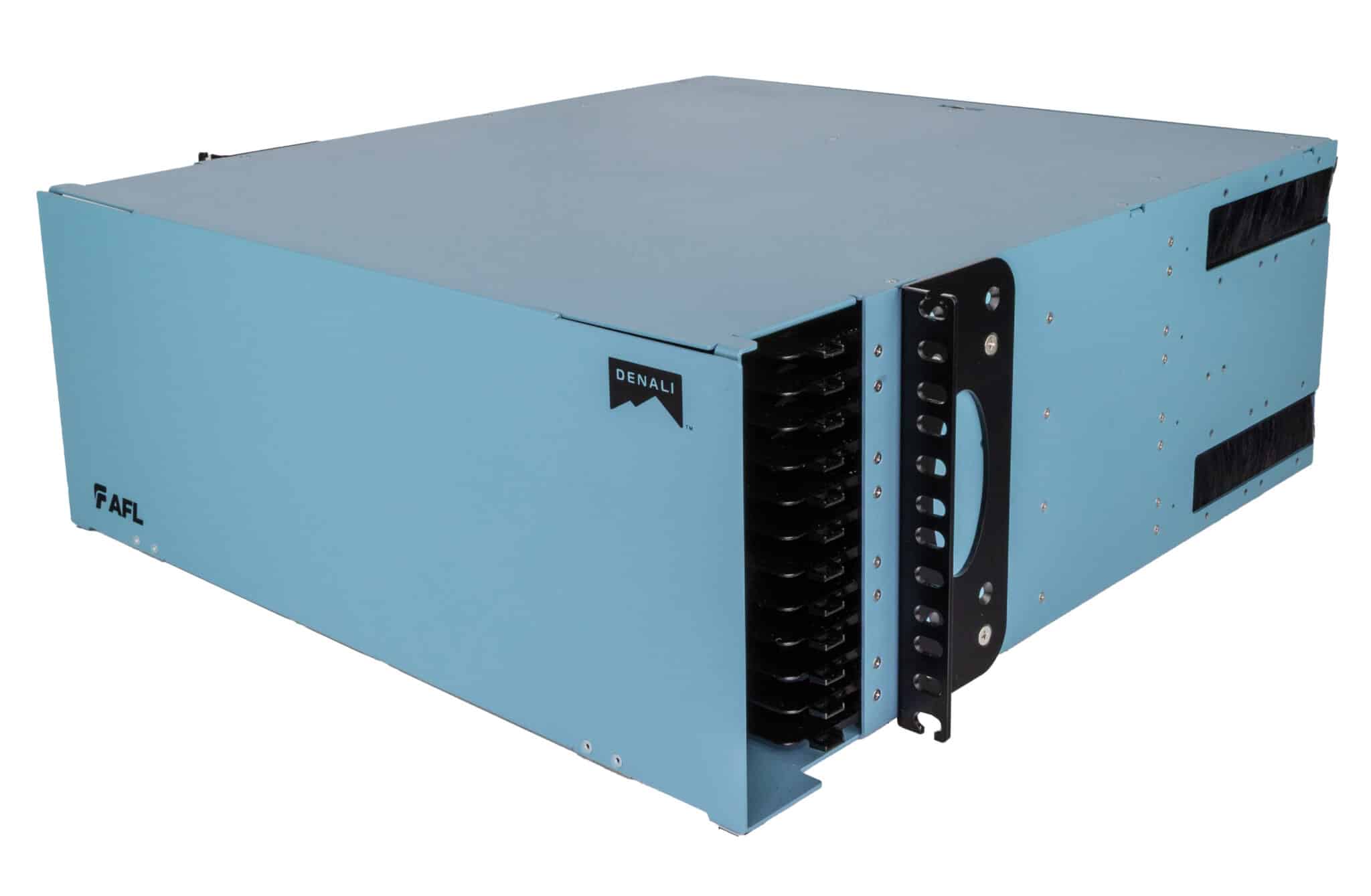

DENALI™ Fiber Housings

DENALI™ Fiber Housings

Universal tray system supports Fanout, Patch, and Splice Cassettes with up to 576 fibers (288 LC ports) in just 4RU. Built to maximize density and simplify scaling in GPU-intensive environments.

Category:

Description

DENALI Fiber Housings support high-speed, high-density fiber network deployments today while enabling tomorrow’s data centers to scale seamlessly with the demands of AI-driven infrastructure and accelerating cloud growth. The modular, tray-based system houses fanout, patch, and splice DENALI cassettes. Designed for GPU-intensive environments, DENALI Fiber Housings support up to 576 fibers (288 LC duplex ports) in 4RU, maximizing capacity, maintaining cable management and enabling easier network scaling as demand grows. Globally available, DENALI Fiber Housings enhance operational efficiency and accelerate go-live times wherever you build.

Key Features

  • High Density Connectivity
    • Modular, universal, tray-based system
    • Up to 288 LC duplex ports (576 fibers) in 4RU
  • Simplified Cable Management for Growing Networks
    • Integrated rear trunk cable management
    • Removable front patch cord management clips
  • Versatile Installation and Access
    • 19″ rack mountable
    • Robust magnetic front door
    • Same tray for all cassette sizes
    • Front or rear cassette loading with sliding trays that lock in extended position for easy access
  • Universal Tray System
    • One tray type fits all cassette sizes

Specifications

PARAMETER DENALI 1RU DENALI 2RU DENALI 4RU
Rack Space 1 RU 2 RU 4 RU
Fiber Density (BASE-12, BASE-24) 144 (LC), 864 (MPO) 288 (LC), 1,728 (MPO) 576 (LC), 3,456 (MPO)
Fiber Density (BASE-8) 144 (LC), 576 (MPO) 288 (LC), 1,152 (MPO) 576 (LC), 2,304 (MPO)
Number of Trays 3 6 12
Cassette Capacity 18 x BASE-8 Cassettes (6 per tray) 36 x BASE-8 Cassettes (6 per tray) 72 x BASE-8 Cassettes (6 per tray)
12 x BASE-12 Cassettes (4 per tray) 24 x BASE-12 Cassettes (4 per tray) 48 x BASE-12 Cassettes (4 per tray)
6 x BASE-24 Cassettes (2 per tray) 12 x BASE-24 Cassettes (2 per tray) 24 x BASE-24 Cassettes (2 per tray)
Dimensions (HxWxD) 44.5 x 438.2 x 501.6 mm 88.9 x 438.2 x 501.6 mm 177.8 x 438.2 x 501.6 mm
1.75 x 17.25 x 19.75 in. 3.5 x 17.25 x 19.75 in. 7.0 x 17.25 x 19.75 in.
Weight 7.5 kg 10.2 kg 15.7 kg
16.6 lbs 22.4 lbs 34.6 lbs
Color Blue Blue Blue
Material Metal Components: 16 GA Galvannealed Sheet Steel per ASTM A653 Metal Components: 16 GA Galvannealed Sheet Steel per ASTM A653 Metal Components: 16 GA Galvannealed Sheet Steel per ASTM A653
